14° X 3/8" Dovetail 1/4" Shank Router Bit

$13.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

The dovetail is probably the most recognizable of all woodworking joints. A dovetail joint is self-aligning and interlocking. There are numerous versions of the dovetail joint, including half blind dovetails, through dovetails, mitered dovetails and sliding dovetails. All of these variations are common in casework and drawer construction. A single dovetail bit can make almost any kind of dovetail, depending on the desired size. You'll need a jig to make most dovetail joints, as well as a guide bushing for your router. Check the instructions with your dovetail jig to select a bit with the appropriate angle, which will usually be somewhere between 7 and 14 degrees.

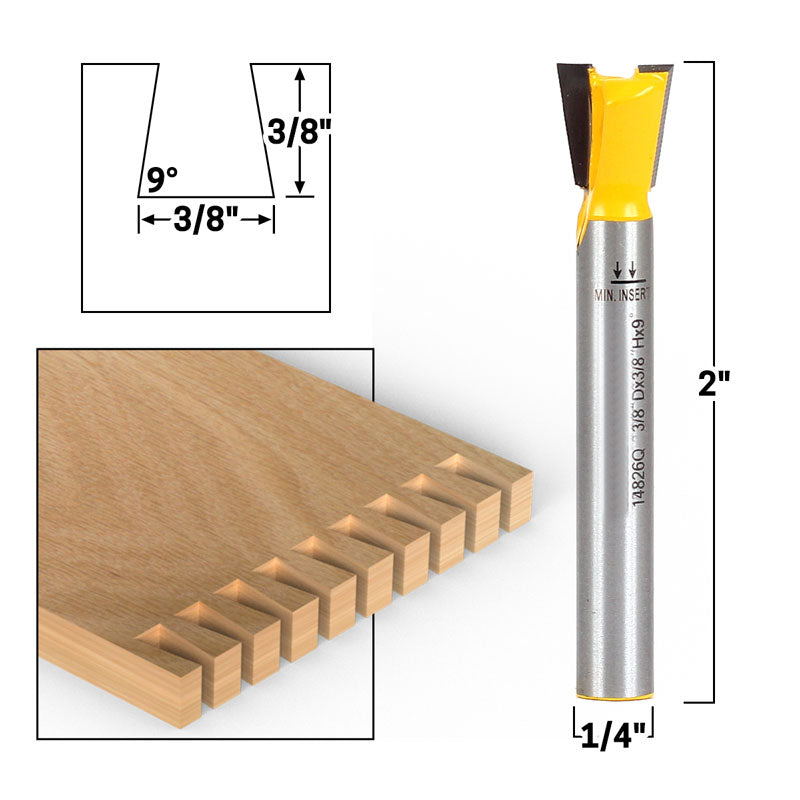

This dovetail bit has a cutting diameter of 3/8", with an angle of ° and a cutting height of 3/8". The shank is 1/4" in diameter.

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/4"
Cutting Diameter:3/8"
Cutting Length:3/8"
Overall Length:2"
Largest Diameter:3/8"
Number of Flutes:2

View full details

This bit worked great for routing groove on edge of full side Trex deck boards. For the last (outside) deck board that is not edge grooved, this bit is an inexpensive alternative to the bits made by Trex. The depth is perfect, but the distance from the finished surface requires two settings for the correct width of the channel. But once those are set, each groove can be cut only at the joist attach regions in seconds.

Items as described. No complaints so far.

this is a great tool

Easy to use on board edges and ends.
Works perfectly, if you only have a few biscuit grooves to make, use this with your router instead of buying a biscuit cutter.
