Available in yellow and red. Colors will be shipped randomly based on stock availability.
Couldn't load pickup availability

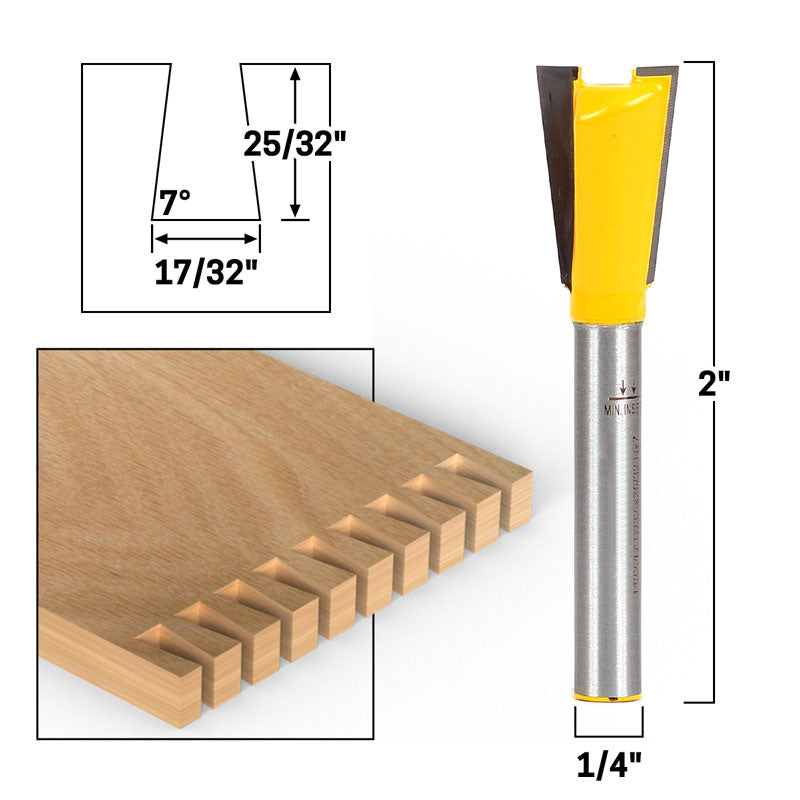

This dovetail bit has a cutting diameter of 17/32", with an angle of 7° and a cutting height of 25/32". The shank is 1/4" in diameter.

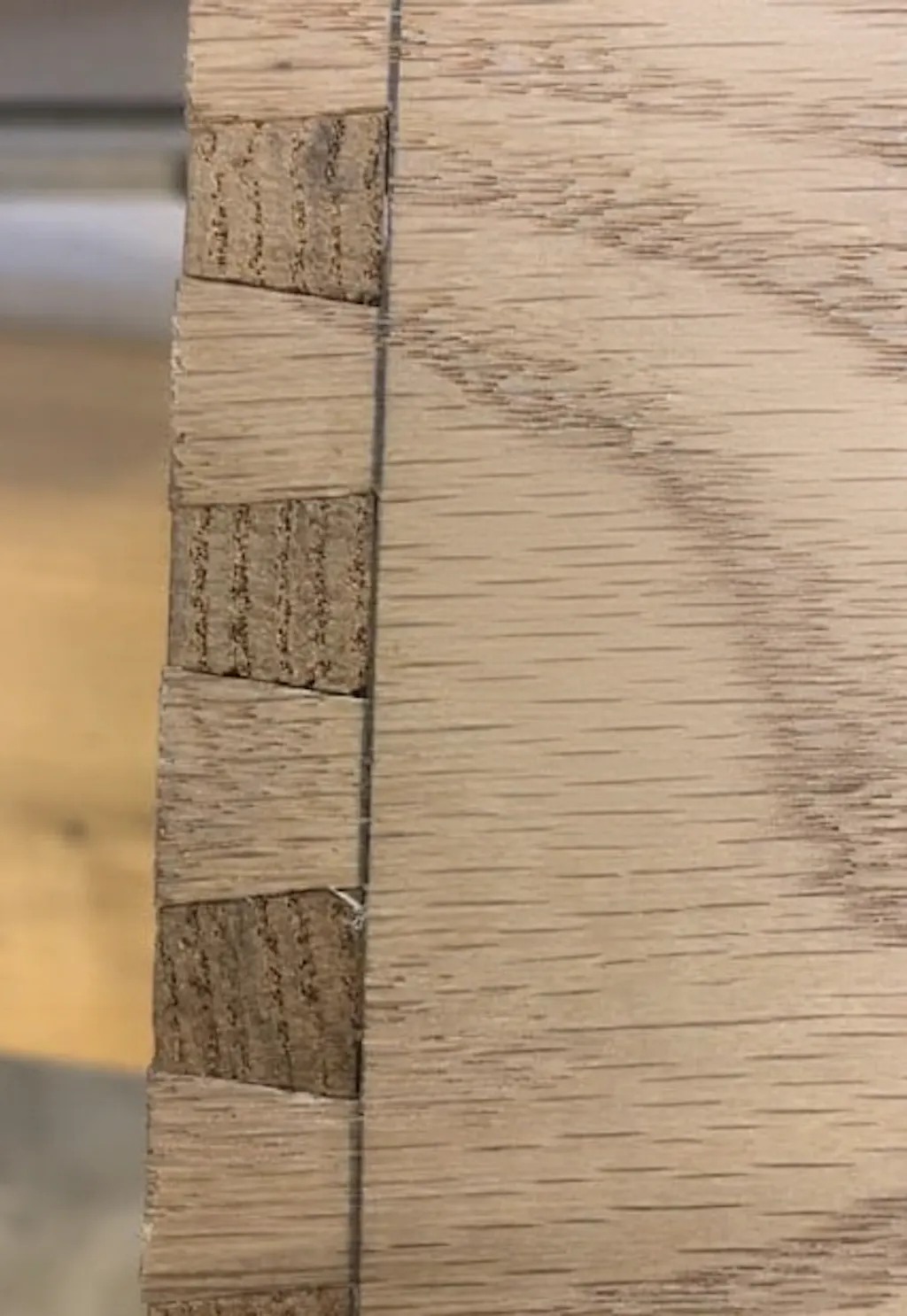

The dovetail is probably the most recognizable of all woodworking joints. A dovetail joint is self-aligning and interlocking. There are numerous versions of the dovetail joint, including half blind dovetails, through dovetails, mitered dovetails and sliding dovetails. All of these variations are common in casework and drawer construction. A single dovetail bit can make almost any kind of dovetail, depending on the desired size. You'll need a jig to make most dovetail joints, as well as a guide bushing for your router. Check the instructions with your dovetail jig to select a bit with the appropriate angle, which will usually be somewhere between 7 and 14 degrees.
Bit Specs Material:Carbide Tipped Overall Length:2" Largest Diameter:17/32" Number of Flutes:2 Number of Bits:1 Shank Size:1/4" Cutting Diameter:17/32" Cutting Length:25/32"
Worked great for putting grooves into a composite deck board to allow for hidden fasteners. We had 50 board to do and it stayed sharp the entire time. Could also be used to grove shiplap and t&g. I would recommend and buy again.
A
Alexander
Works great.
A
Alberto Lopez Marquez
very good buy, recommended
