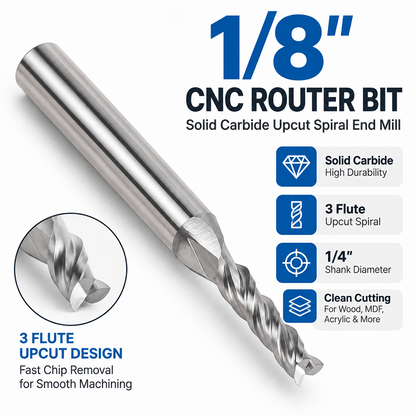

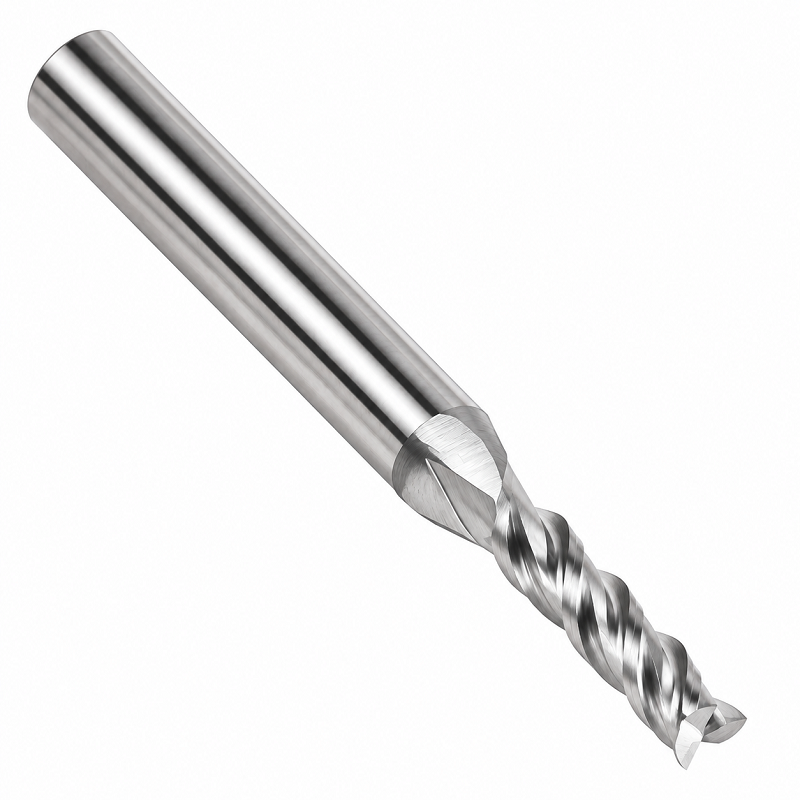

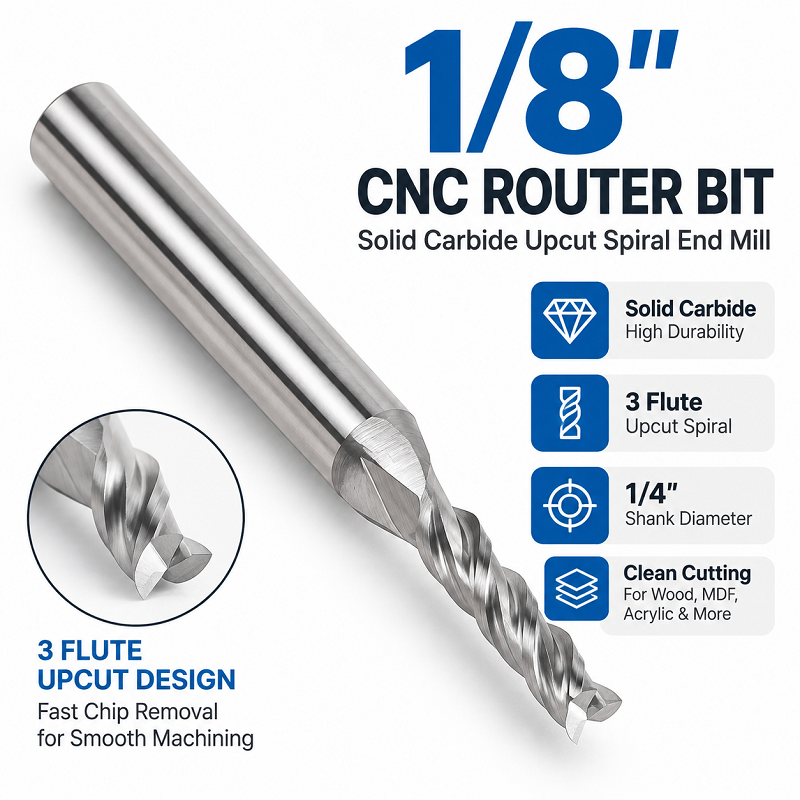

Up Cut Solid Carbide 1/8" X 1/2" X 1/4" X 2" CNC Router Bit

$24.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

Best used for: Standard milling, dadoing, and boring

Cutting Height: 1/2"
Overall Length: 2"
Shank Diameter: 1/4"
Cutting Diameter: 1/8"
Flutes: 3 Up-cut endmills direct woodchips up and away from the milling area leaving an unobstructed path for the endmill. Bit breakage is less likely. Up cut end mills are the best choice for most standard millling applications. The up cut direction can leave behind a minimally rough top surface edge. Pros: Quick and efficient milling, chip removal. Cons: Can cause minimal top surface edge roughness or tear-away. (Choose a down cut spiral bit for projects that require smooth top surface edges.) For use in CNC milling and carving machines.

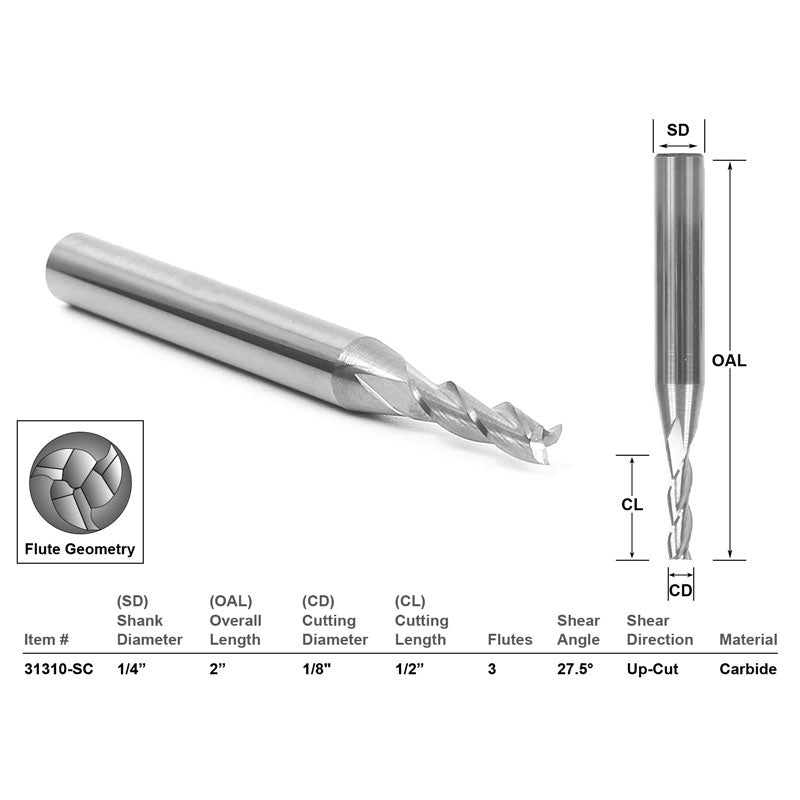

Bit Specs
Material:Solid Carbide
Cut Direction:Upcut
End Mill Type:Upcut
Shank Size:1/4"
Number of Bits:1
Overall Length:2"
Cutting Diameter:1/8"
Cutting Length:1/2"
Number of Flutes:3
Flute Angle:27.5°
