Small Door Panel & Baseboard Ogee Molding 1/2" Shank Router Bit

$33.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

Use this router bit to create small ogee cabinet door raised raised panels. Can also be used for simple and elegant ogee baseboards. 1/2" Shank.

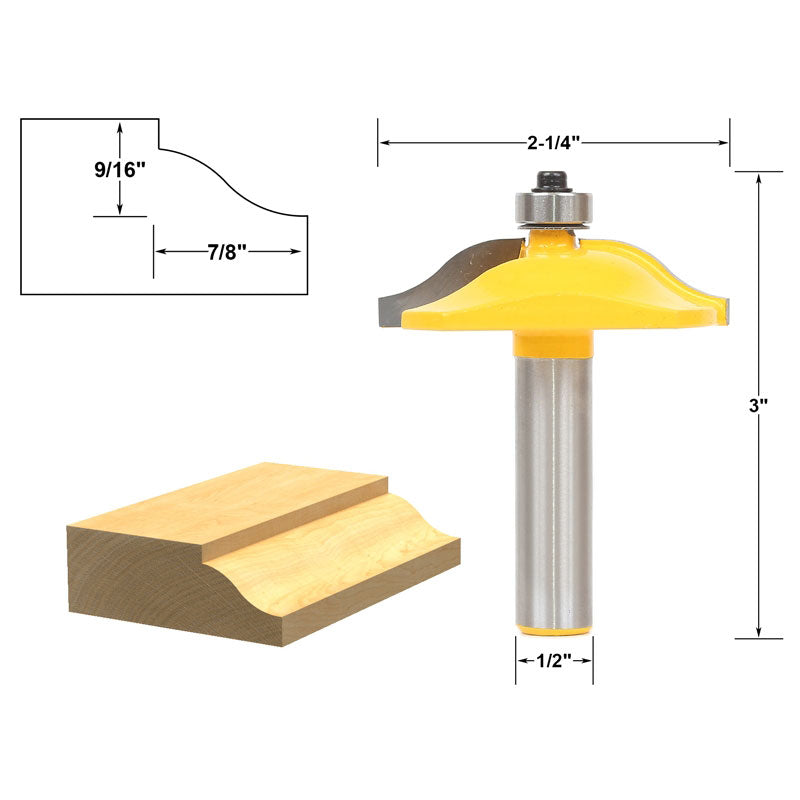

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/2"
Largest Diameter:2-1/4"
Number of Flutes:2
Cutting Length:9/16"
Cutting Depth:7/8"
Overall Length:3"

Features
Industrial Quality
Build-Up Resistant Coating
Satisfaction Guaranteed
C3 Tungsten Carbide Cutters
Solid Hardened Steel Body
Anti-Kickback Design

View full details

Bought this to duplicate our existing raised panel kitchen cabinet doors for an additional cabinet set I've built. It's not exactly the same but it's really close and the bit didn't cost me $125.

Okay, ran this in my Craftsman 1/2" router mounted in my router table. It took a LOT of passes to get to the final machining, but I had expected that. The first few passes I was able to take fairly large bites, but then the passes got really tough if I tried to take off more than about 1/16" or so (even less toward the end), especially on the end grain edges of my panels. I had 8 panels to do measuring about 12" x 24". The last 2 or 3 passes I took really, really narrow bites to ensure the finished product would come out well with no burn marks. Really no complaints, the bit stayed sharp throughout and I have some nice looking panels.
