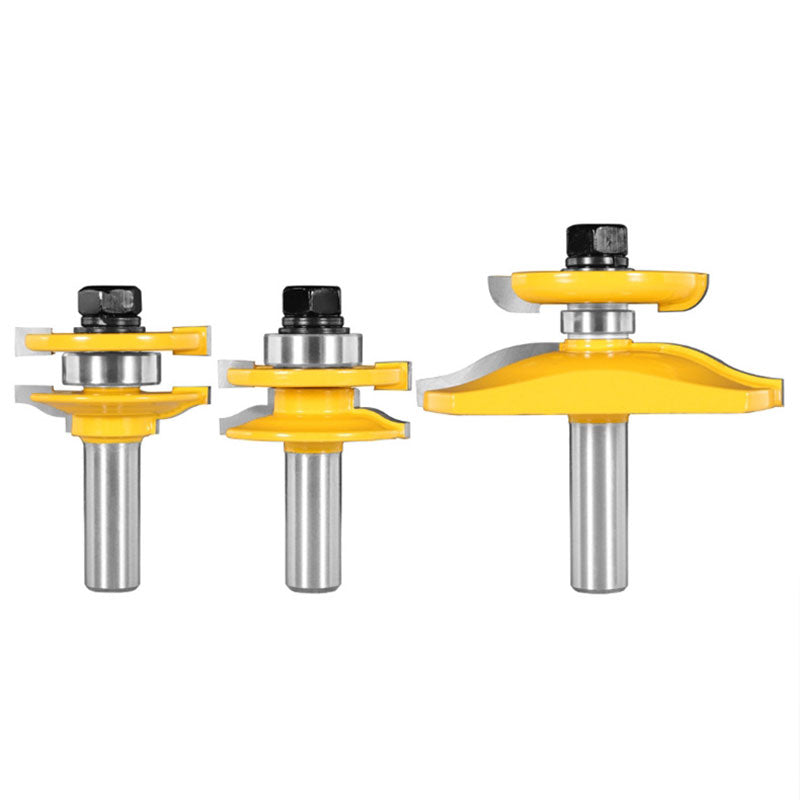

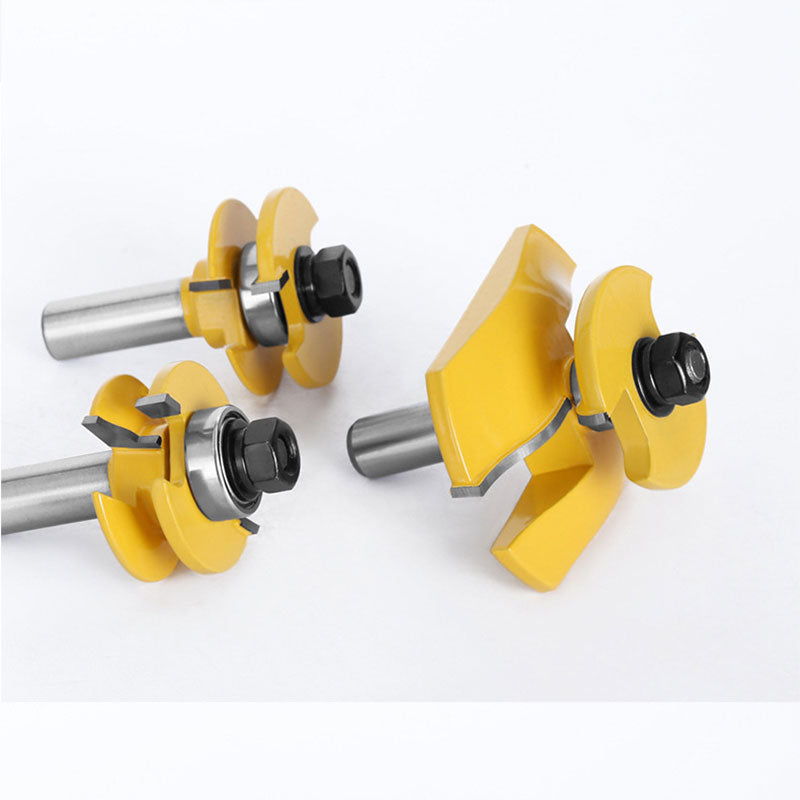

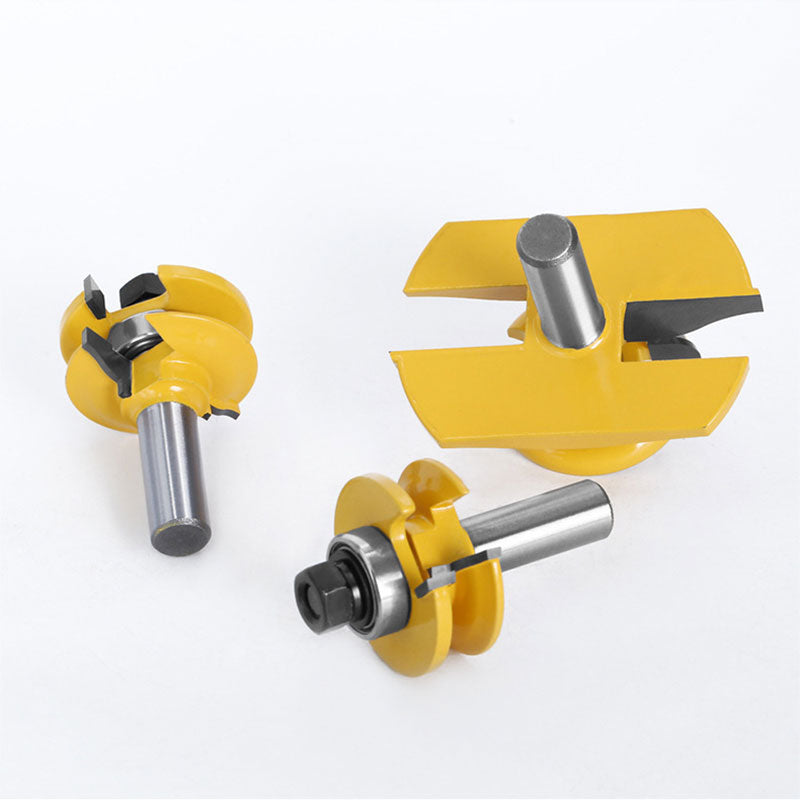

Shaker 3 Bit Raised Panel Cabinet Door Router Bit Set 1/2" Shank with Back cutter Panel Raiser

Shaker 3 Bit Raised Panel Cabinet Door Router Bit Set 1/2" Shank with Back cutter Panel Raiser

Regular price $95.00 AUD
Regular price Sale price $95.00 AUD
Sale Sold out
Shipping calculated at checkout.
Available in yellow and red. Colors will be shipped randomly based on stock availability.

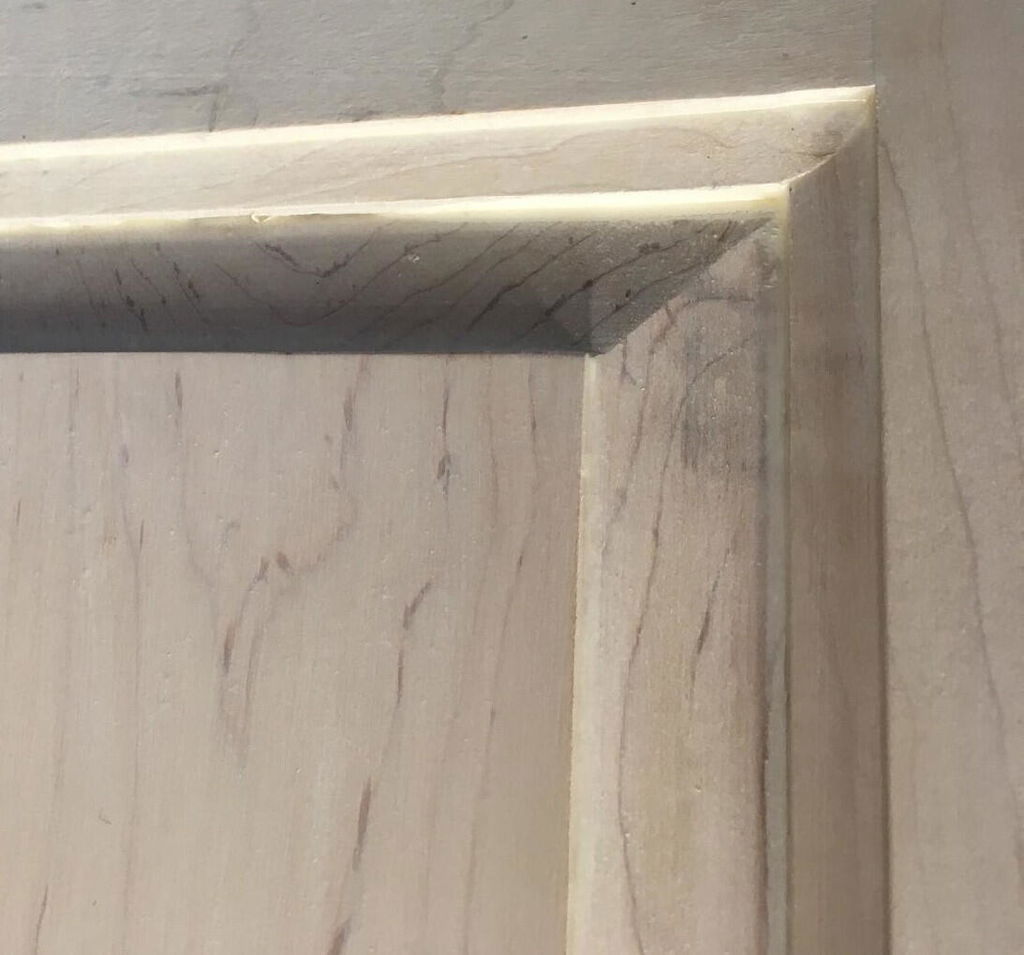

Rail and stile door construction has been around for centuries and is the most common way to build doors for cabinets and furniture. Our rail and stile router bits will enable you to create your own frame-and-panel doors. Cope the ends of your rails with one bit, and then switch to the second bit to route the inside edge profile in all your door parts. The included panel raiser cuts the artistic profile on the center panel which reduces the panel's thickness to properly fit in the door frame's groove.

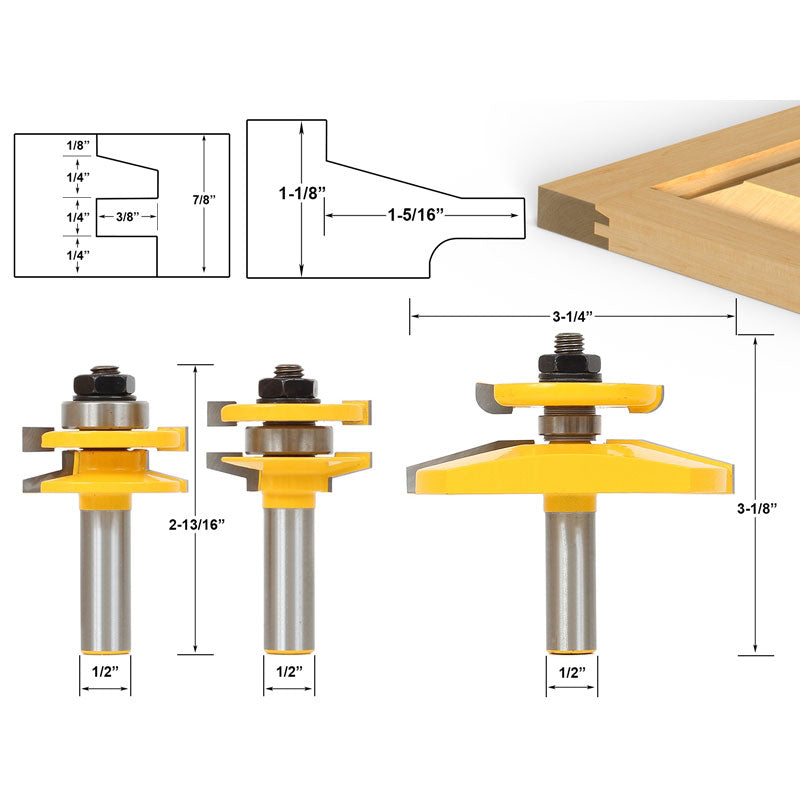

Make professional, bevel raised panel cabinet doors. Set includes bevel rail and stile bits and a bevel design panel raiser with a backcutter. For use with up to 7/8" stock. Router Bit Dimensions: Rail and Stile - 1-5/8" Diameter, 7/8" Cutter Height, 2-3/4" Overall Height, 3/8" Cutting Depth Panel Raiser - 3-1/8" Diameter, 1/2" Cutter Height (w/out backcutter), 3" Overall Height, 1-1/4" Cutter Depth Rail and stile bits create a perfectly matched rail & stile door frame. The raised panel bit will add a bevel edge to the central panel of your door. The panel raiser bit can also be used to make attractive drawer fronts, table tops, plaques and moldings. Fully enclosed ball bearing guides allow for precise cuts without the use of a fence. Two flute carbide cutters & 1/2" shanks. Set comes in a solid wood storage case.

Bit Specs
Material:Carbide Tipped
Shank Size:1/2"
Number of Flutes:2
Minimum Stock Thickness:3/4"
Maximum Stock Thickness:1"
Number of Bits:3
