Round Over 3 Bit Raised Panel Cabinet Door 1/4" Shank Router Bit Set

Round Over 3 Bit Raised Panel Cabinet Door 1/4" Shank Router Bit Set

Regular price $75.00 AUD
Regular price Sale price $75.00 AUD
Sale Sold out
Shipping calculated at checkout.
Available in yellow and red. Colors will be shipped randomly based on stock availability.

Rail and stile door construction has been around for centuries and is the most common way to build doors for cabinets and furniture. Our rail and stile router bits will enable you to create your own frame-and-panel doors. Cope the ends of your rails with one bit, and then switch to the second bit to route the inside edge profile in all your door parts. The included panel raiser cuts the artistic profile on the center panel which reduces the panel's thickness to properly fit in the door frame's groove.

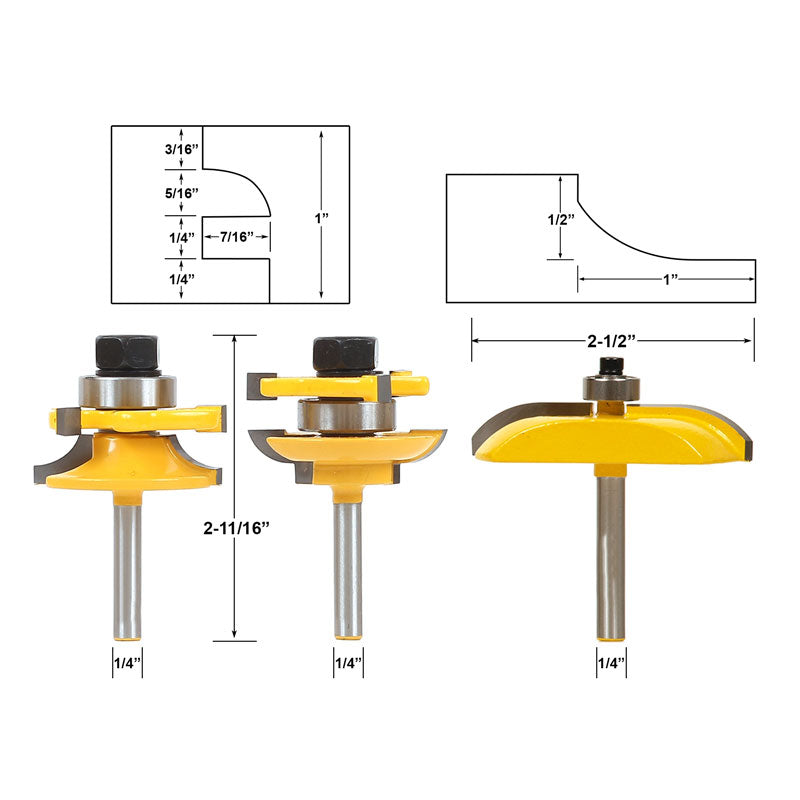

The Door Construction Router Bit Set includes 1/4" round over rail and stile bits and a 1/4" cove panel raiser. For use with up to 1" stock. Router Bit Measurements: Rail & Stile - 1-3/4" Diameter, 1" cutter height, 2-7/8" overall height, 3/8" depth of cut, 7/8" bearing diameter Panel Raiser - 2-1/2" diameter, 1/2" cutter height, 2-7/16" overall height, 1" depth of cut, 1/2" bearing diameter Rail and stile bits create a perfectly matched rail and stile door frame. The cove raised panel router bit cuts a stylish edge on the central panel of your door. Ball bearing guides allow you to make precise cuts without the use of a fence. The router bit set comes in a solid wood storage case. Bit shanks are 1/4".

Bit Specs
Maximum Stock Thickness:1"
Number of Bits:3
Shank Size:1/4"
Material:Carbide Tipped
Number of Flutes:2
Minimum Stock Thickness:7/8"
