Ogee 3 Bit Raised Panel Cabinet Door 1/4" Shank Router Bit Set with Vertical Panel Raiser

Ogee 3 Bit Raised Panel Cabinet Door 1/4" Shank Router Bit Set with Vertical Panel Raiser

Regular price $75.00 AUD
Regular price Sale price $75.00 AUD
Sale Sold out
Shipping calculated at checkout.
Available in yellow and red. Colors will be shipped randomly based on stock availability.

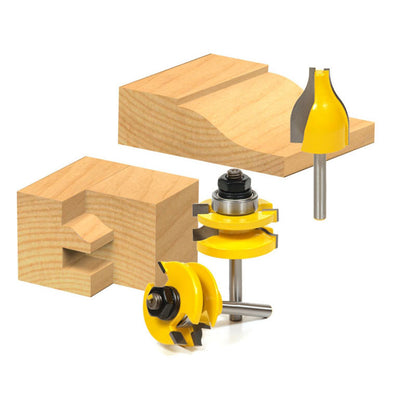

Rail and stile door construction has been around for centuries and is the most common way to build doors for cabinets and furniture. Our rail and stile router bits will enable you to create your own frame-and-panel doors. Cope the ends of your rails with one bit, and then switch to the second bit to route the inside edge profile in all your door parts. The included panel raiser cuts the artistic profile on the center panel which reduces the panel's thickness to properly fit in the door frame's groove.

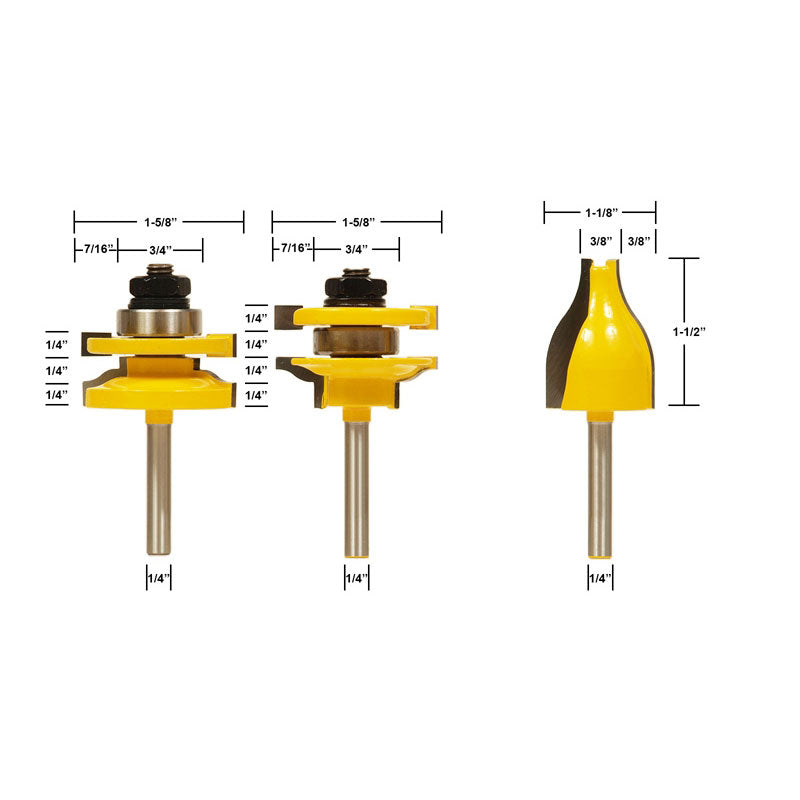

The Door Construction Router Bit Set includes matched 1/4" ogee rail and stile bits and a 1/4" vertical ogee panel raiser. Use with up to 1" stock. Bit shanks are 1/4". Router Bit Measurements: Rail & Stile - 1-5/8" diameter, 1" cutter height, 3" overall height, 3/8" depth of cut, 7/8" bearing diameter. Vertical Panel Raiser - 1-1/8" diameter, 1-1/2" cutter height, 3" overall height, 3/8" depth of cut, 3/8" bearing diameter Rail and stile bits create a perfectly matched rail and stile door frame. The ogee vertical raised panel router bit puts a classic edge on the central panel of your door. Ball bearing guides allow you to make precise cuts without the use of a fence. The router bit set comes in a solid wood storage case.

Bit Specs
Material:Carbide Tipped
Minimum Stock Thickness:3/4"
Maximum Stock Thickness:1"
Number of Bits:3
Shank Size:1/4"
Number of Flutes:2
