Hinge Mortise Template 1/4" Shank 1/2" Diameter X 5/8" Bearing Router Bit

Hinge Mortise Template 1/4" Shank 1/2" Diameter X 5/8" Bearing Router Bit

Regular price $21.00 AUD
Regular price Sale price $21.00 AUD
Sale Sold out
Shipping calculated at checkout.
Available in yellow and red. Colors will be shipped randomly based on stock availability.

Flush trim template router bits work in your router table or handheld router. Secure your template to the top face of the work for handheld operations, or to the bottom face of the work when using a router table. It's helpful to have at least a couple of flush trim bits in different sizes in your router bit collection. 1/4" and 1/2" diameters make a good combination.

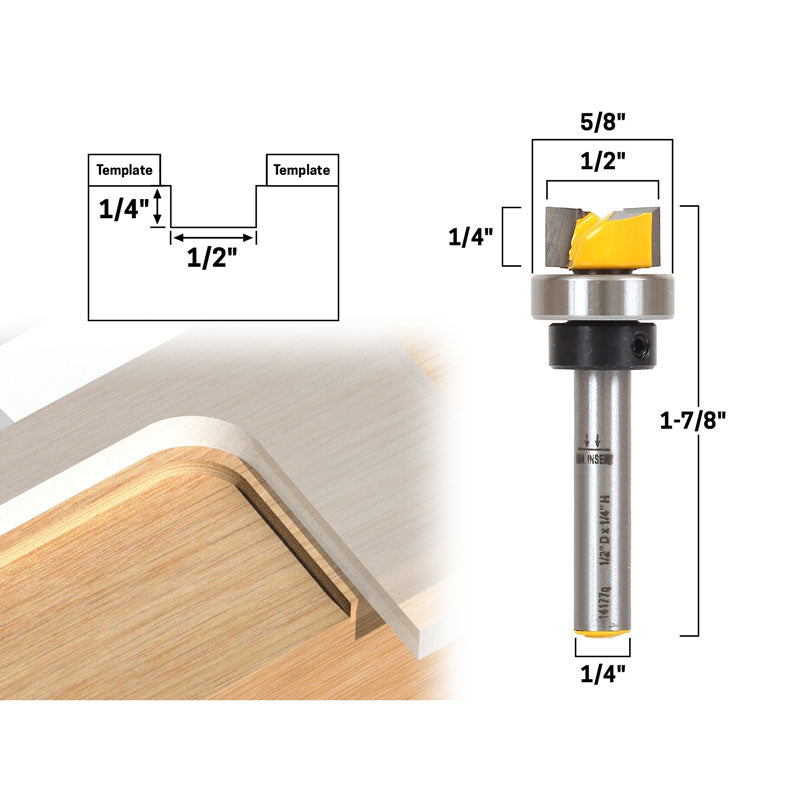

This bit has a cutting diameter of 1/2" and a cutting depth of 1/4". The bearing has a diameter of 5/8" which helps preserve the template. The shank diameter is 1/4". Especially designed for hinge mortising templates, this offset template trim mortising router bit with bearing will allow you to route corners with radiuses as small as 1/4". The larger bearing removes the blade from the template, shielding it from any unwanted trimming.

Bit Specs
Material:Carbide Tipped
Overall Length:1-7/8"
Largest Diameter:5/8"
Number of Flutes:2
Number of Bits:1
Shank Size:1/4"
Cutting Diameter:1/2"
Cutting Length:1/4"
