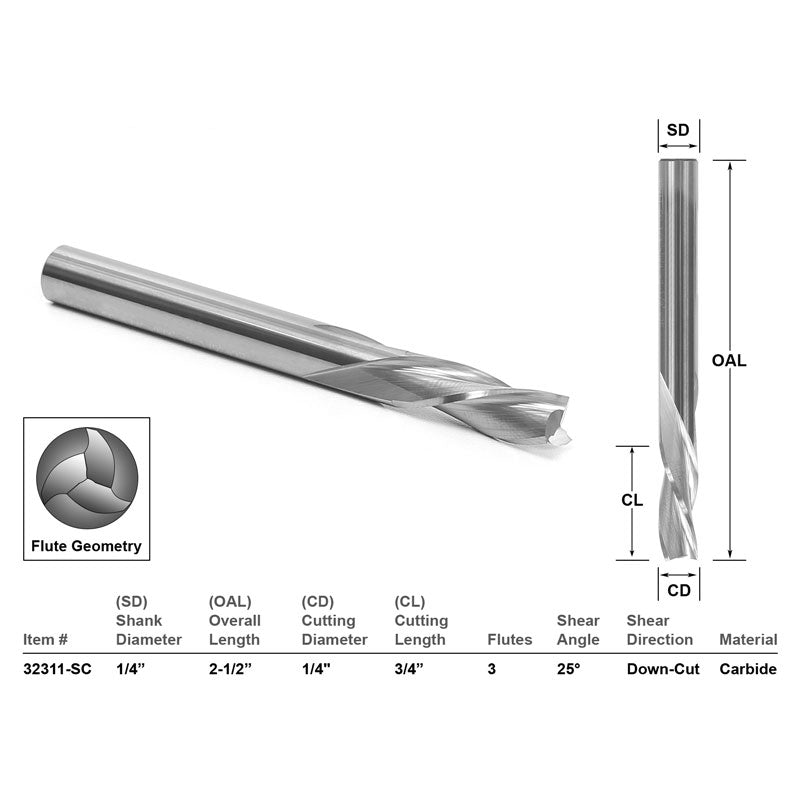

Down Cut Solid Carbide1/4" X 3/4" X 1/4" X 2 1/2" CNC Router Bit

Bit Specs
Material:Solid Carbide
Number of Bits:1
End Mill Type:Downcut
Shank Size:1/4"
Cut Direction:Downcut
Cutting Diameter:1/4"
Cutting Length:3/4"
Overall Length:2-1/2"
Number of Flutes:3
Flute Angle:2°

Best used for: Laminate or veneer-finish plunging and dadoing.

• Cutting Diameter: 1/4"
• Cutting Height: 3/4"
• Shank Diameter: 1/4"
• Overall Length: 2-1/2"
• Flutes: 3

Down cut endmills shear in a downward direction causing the uppermost layer of the material to be pressed down against the material just below it. This motion leaves a perfectly clean top surface edge. A concentration of wood chips in the work path will occur. Hose away excess wood chips to prevent bit breakage.

Pros: Prevents top surface edge chipping and tear-away.
Cons: Less than optimal chip removal when dadoing or plunging.
(Choose an up cut spiral bit for standard more efficient milling.)

For use in CNC milling and carving machines.
