5/8" Classical Ogee Edge Forming 1/2" Shank Router Bit

$25.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

Edge forming router bits add an artistic profile to the edge of furniture and table tops. Edging router bits can also be used to create small moldings that can be applied to many projects as well as crown molding build-ups. Edge forming router bits come in many shapes and sizes to meet the requirements of any style.

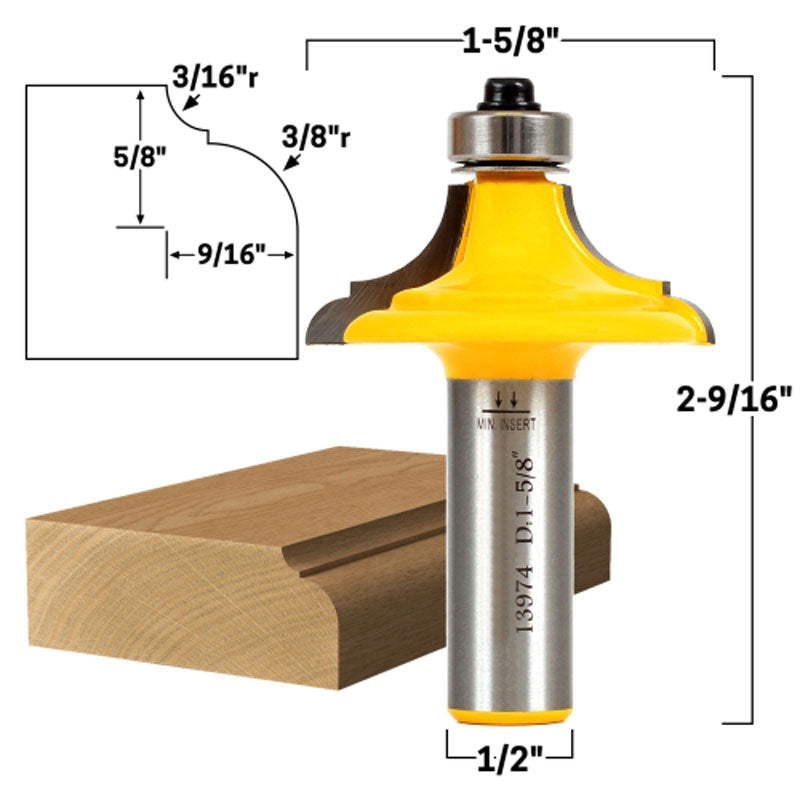

This Classical Ogee Multi Radius router bit has a cutting depth of 9/16" and a cutting height of 5/8". The multi radius design lends a timeless classic look to your furniture. The radiuses are 3/16" and 3/8" for the upper and lower radiuses respectively. The shank is 1/2".

Bit Specs
Material:Carbide Tipped
Overall Length:2-9/16"
Largest Diameter:1-5/8"
Number of Flutes:2
Number of Bits:1
Shank Size:1/2"
Cutting Length:5/8"
Cutting Depth:9/16"

View full details

I figured I would give these bits a try. I had to buy the set even though I already had a Grizzly 1/2" bit because the set made the cost per bit so low. I haven't tried cutting any wood yet, but they look well enough made. I took some pictured of the bits in their wooden box, a side by side with the Griz 1/2" bit, and measured them both.

As an aside, my bits came in a handy wooden box that will protect them nicely. HTH

These are a fairly-priced set for occasional work. I used the 1/4" bit to put "pips" into homemade wooden dominoes, and got pretty smooth results with very little tearout.
