5/32" x 3/8" 1/4" Shank Top Bearing Slot Cutter Router Bit

$24.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

Top bearing slot cutting router bits are specifically designed for on-site deck board slotting to be used in conjunction with hidden deck board fasteners. The bearing's position allows for easy slotting on deck boards that are already positioned on the deck beams. There is no protrusion at the end of the bit that will interfere with any underlying wood.

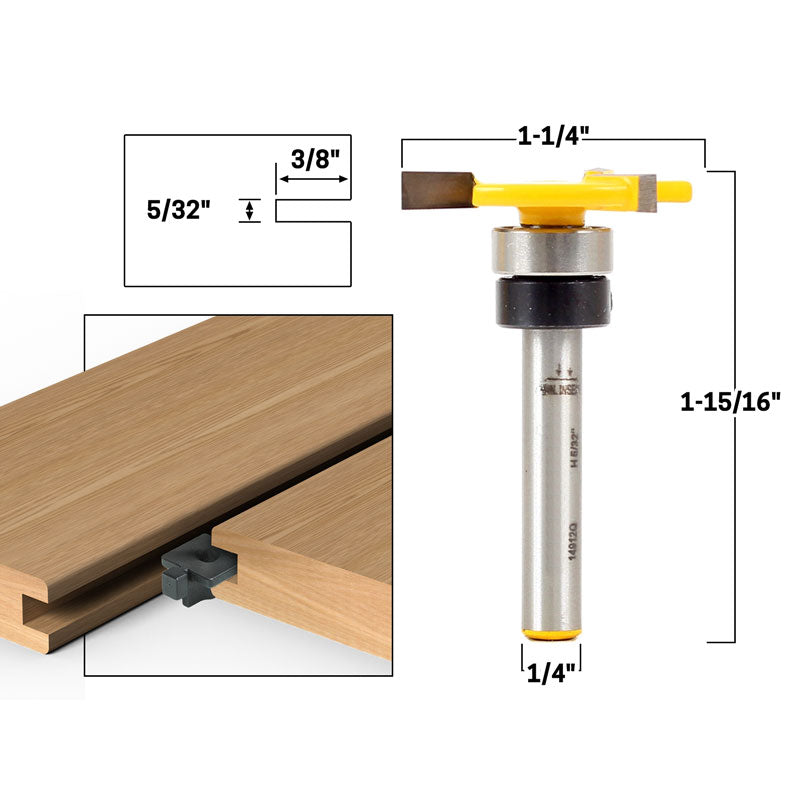

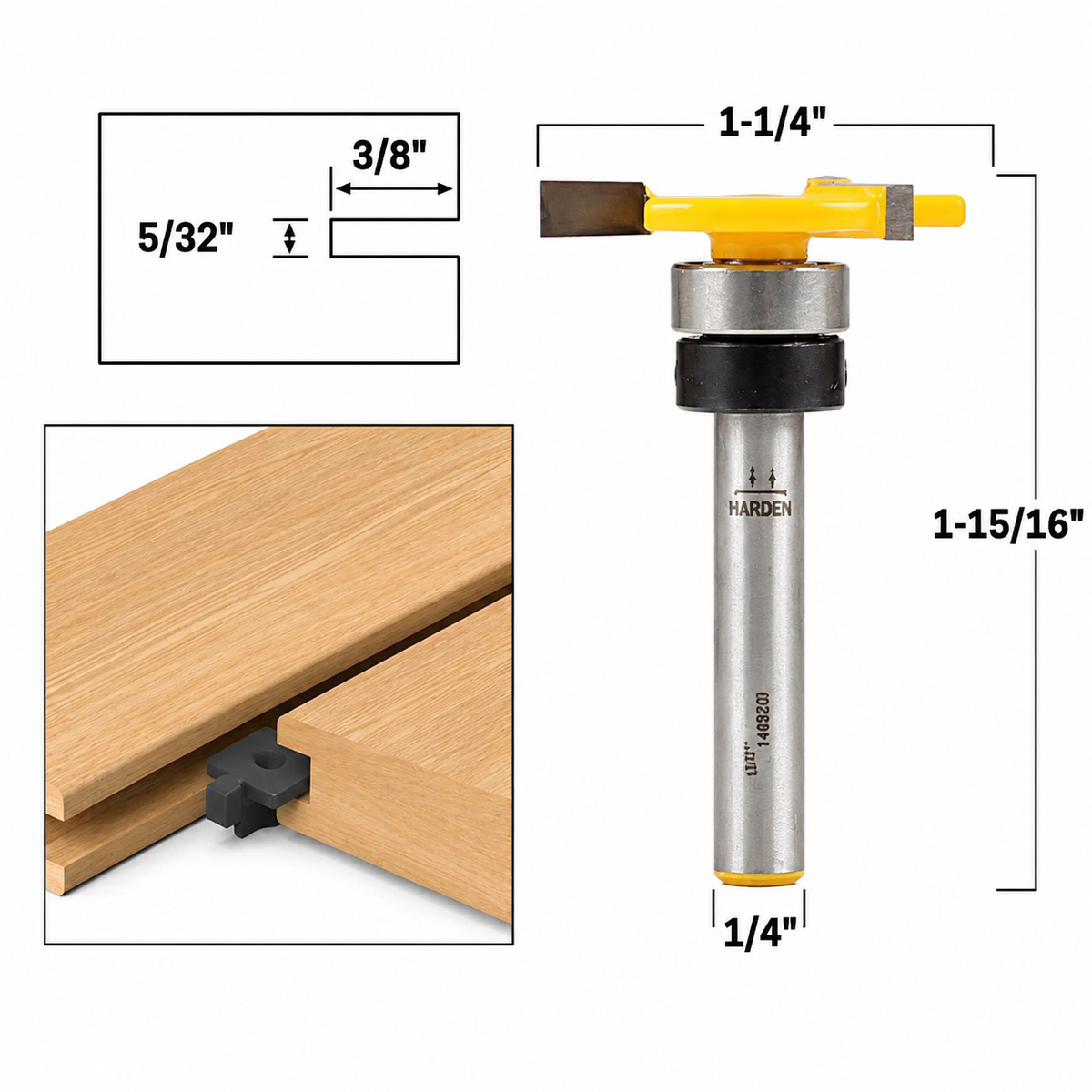

This top bearing slot cutter router bit routes a 5/32" x 3/8" slot. The overall diameter is 1-1/4" and 1/4" shank.

Bit Specs
Material:Carbide Tipped
Overall Length:1-15/16"
Largest Diameter:1-1/4"
Number of Flutes:3
Number of Bits:1
Shank Size:1/4"
Cutting Length:5/32"
Cutting Depth:3/8"

View full details

I will rarely use a dovetail joint, and these bits from other sources can be quite expensive. But I needed a bit to cut dovetails on pieces of track for a toy train I am building for grandson. This bit did the job well, cut cleanly, and I am very pleased with it, as it didn't "break the bank" too!

I like it, great value for this tool! As others have said its not able to make the shape of the biscuit by pushing it straight in to the wood, you have to go sideways a short bit too. That is the only negative thing I can say.

Otherwise, great value for a tool that worked great!

Top bearing bit was perfect for putting a groove in an existing stair tread (top of stairs) to more securely fit the new tongue and groove wood flooring to that stair tread. Right tool for the job!
