5/32" Height X 3/8" Depth Slot Cutter 1/2" Shank Router Bit

$22.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

Slot router bits come in handy for many joinery project. Slotting bits can be used biscuit joinery, cope and stick and to create panel slots in rail and stile cabinet doors.

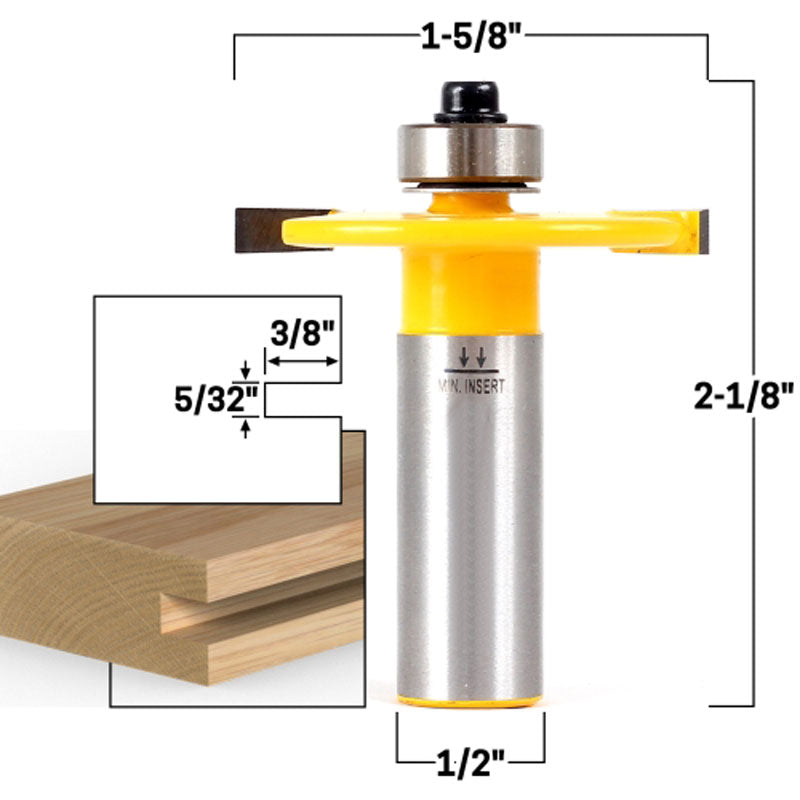

This slotting bit has a cutting depth of 3/8" and a cutting thickness of 5/32". The overall length is 2-1/8" with a 1/2" shank.

Bit Specs
Material:Carbide Tipped
Overall Length:2-1/8"
Largest Diameter:1-5/8"
Number of Flutes:2
Number of Bits:1
Shank Size:1/2"
Cutting Length:5/32"
Cutting Depth:3/8"

View full details

Durable and performs as a higher price tool. Very please. Sound tool for week-end craftsman.

Joining 1x4 boards

Works great for cutting grooves in my 3/4” hardwood flooring!

I have only used this cutter to make one box so far, but on first impressions it's great. The cutter head is solid carbide, brazed onto a steel shank. The dovetail has a nice slim profile that matches many hand-cut dovetails I've seen. I did experience a little but of tear out, but I don't think I can blame the bit for that. Will try with a backer board on both sides of the work next time.
