Available in yellow and red. Colors will be shipped randomly based on stock availability.

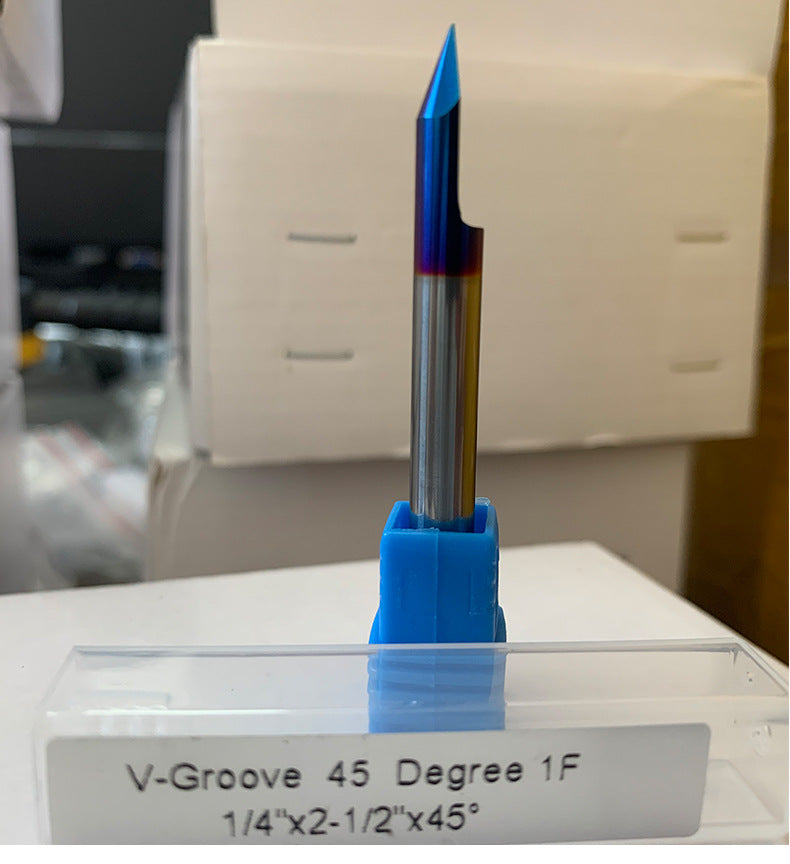

Designed for CNC engraving and V-groove carving applications, this 45° V-Groove Engraving Router Bit delivers clean and precise cuts for sign making, lettering, logo engraving, and decorative woodworking projects.
Made from premium tungsten carbide material with an nACo coating, this 1/4" shank CNC router bit offers excellent hardness, wear resistance, and cutting stability. It is suitable for CNC machines, engraving machines, and router systems for processing plywood, MDF, oak, and various hardwood materials.
✅Precision V-Groove Cutting Design
Designed with a 45° V-angle profile and a 0.005" tip width, this engraving bit produces fine, clean grooves for detailed carving, lettering, and decorative patterns.
✅Premium Tungsten Carbide Construction
Made from high-quality tungsten carbide material, this router bit provides excellent hardness and durability for repeated CNC engraving and woodworking applications.

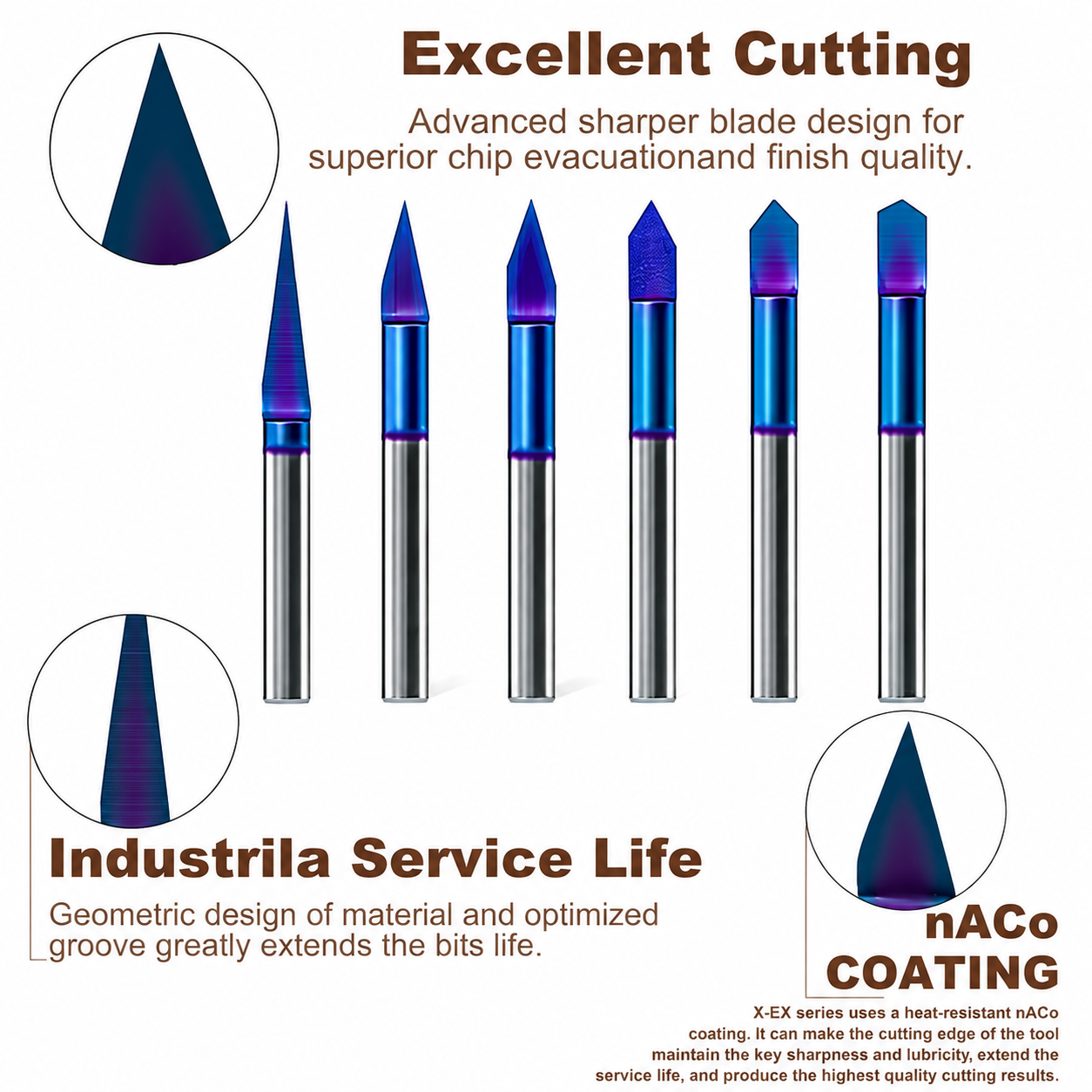

✅nACo Nano Coating Technology
Features a heat-resistant nACo coating designed to reduce friction, improve wear resistance, and help maintain sharp cutting edges during repeated machining operations.
✅Optimized Chip Removal
The specially designed flute geometry helps improve chip evacuation, supporting smoother cutting performance and cleaner engraving results.
✅Wide Application Compatibility

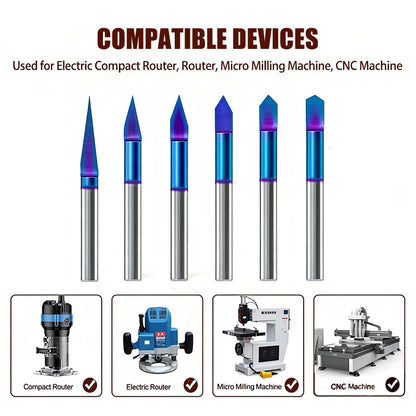

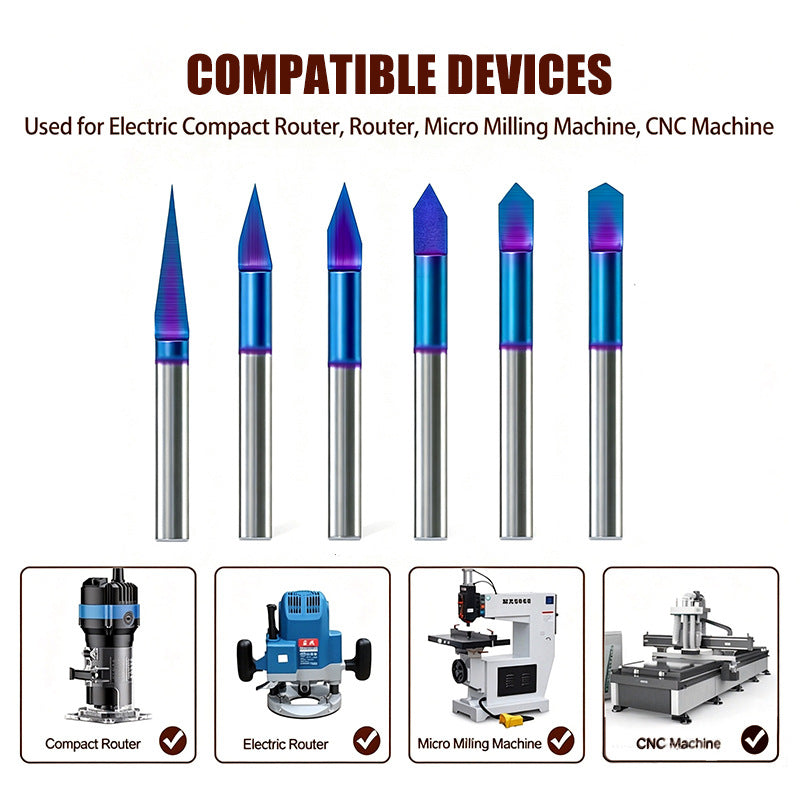

Used for Electric Compact Router, Router, Micro Milling Machine, CNC Machine

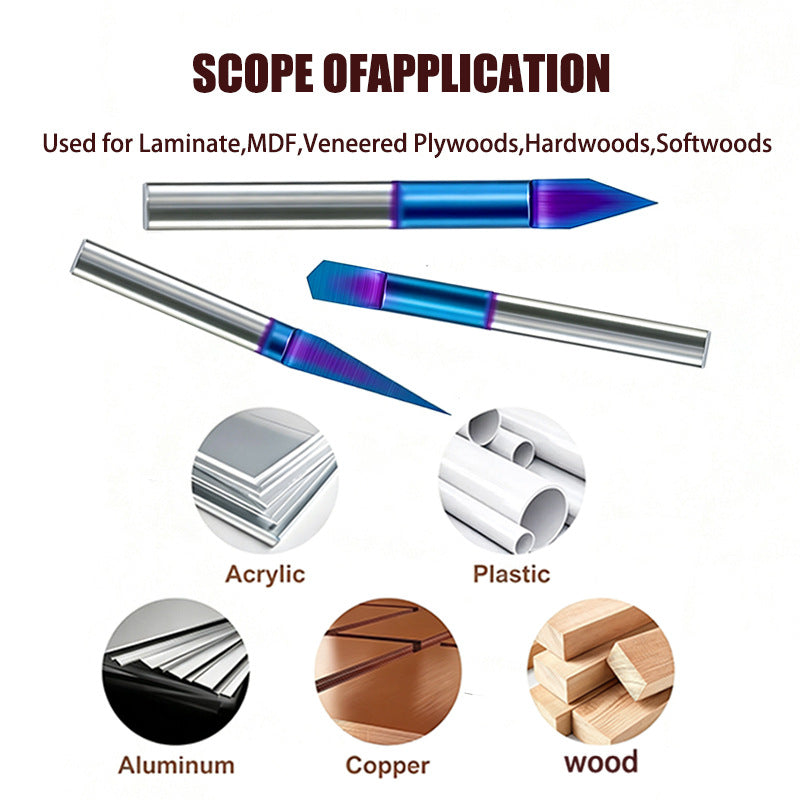

Used for Laminate, MDF, Veneered Plywoods, Hardwoods, Softwoods

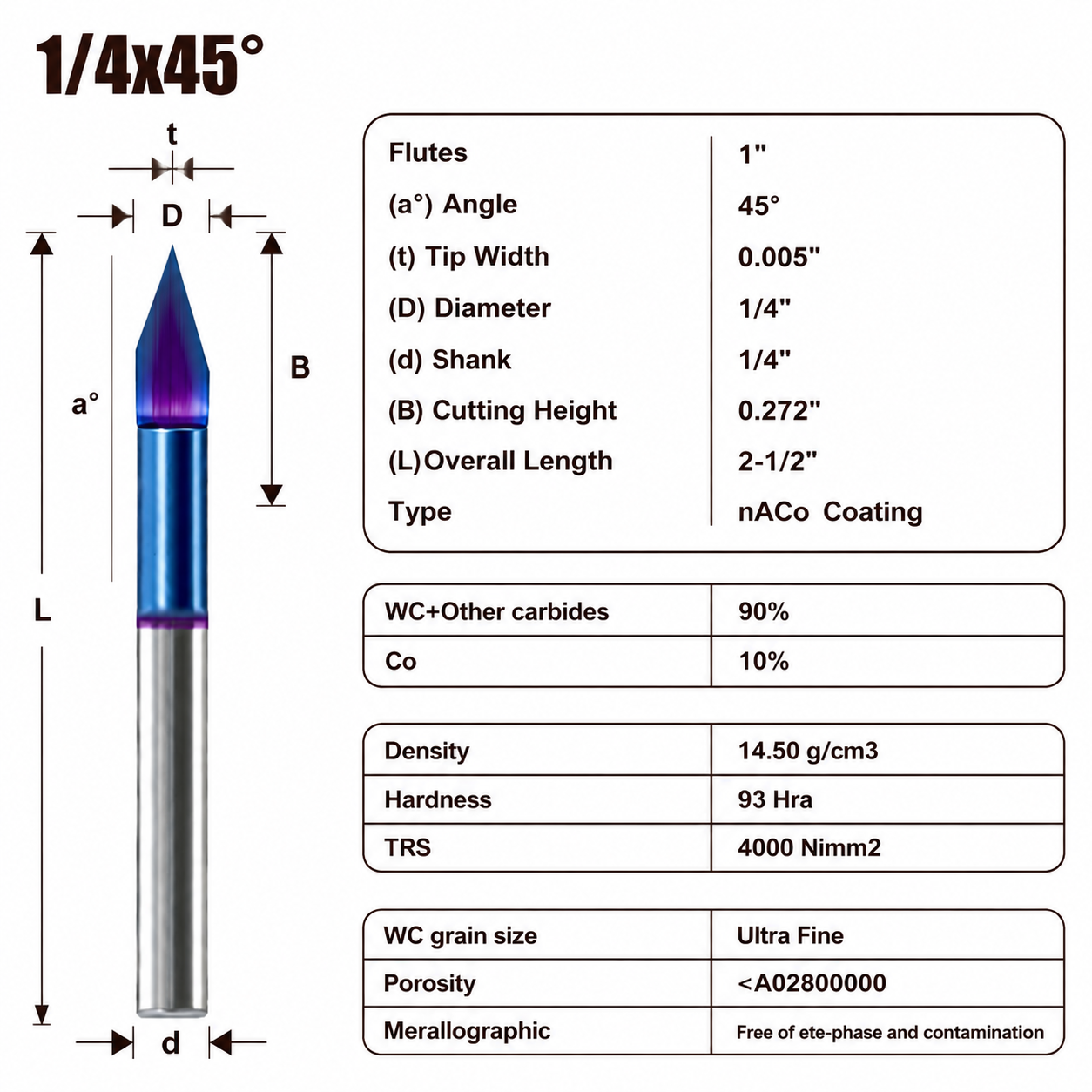

Specifications
Angle: 45°
Tip Width: 0.005"
Diameter: 1/4"
Shank Diameter: 1/4"
Cutting Height: 0.272"
Overall Length: 2-1/2"
Number of Flutes: 1 Flute
Coating: nACo Coating
Material: Tungsten Carbide
WC Content: 90%
Cobalt Content: 10%
WC Grain Size: Ultra Fine
Hardness: 93 HRA
Transverse Rupture Strength (TRS): 4000 N/mm²
Density: 14.50 g/cm³
