Available in yellow and red. Colors will be shipped randomly based on stock availability.

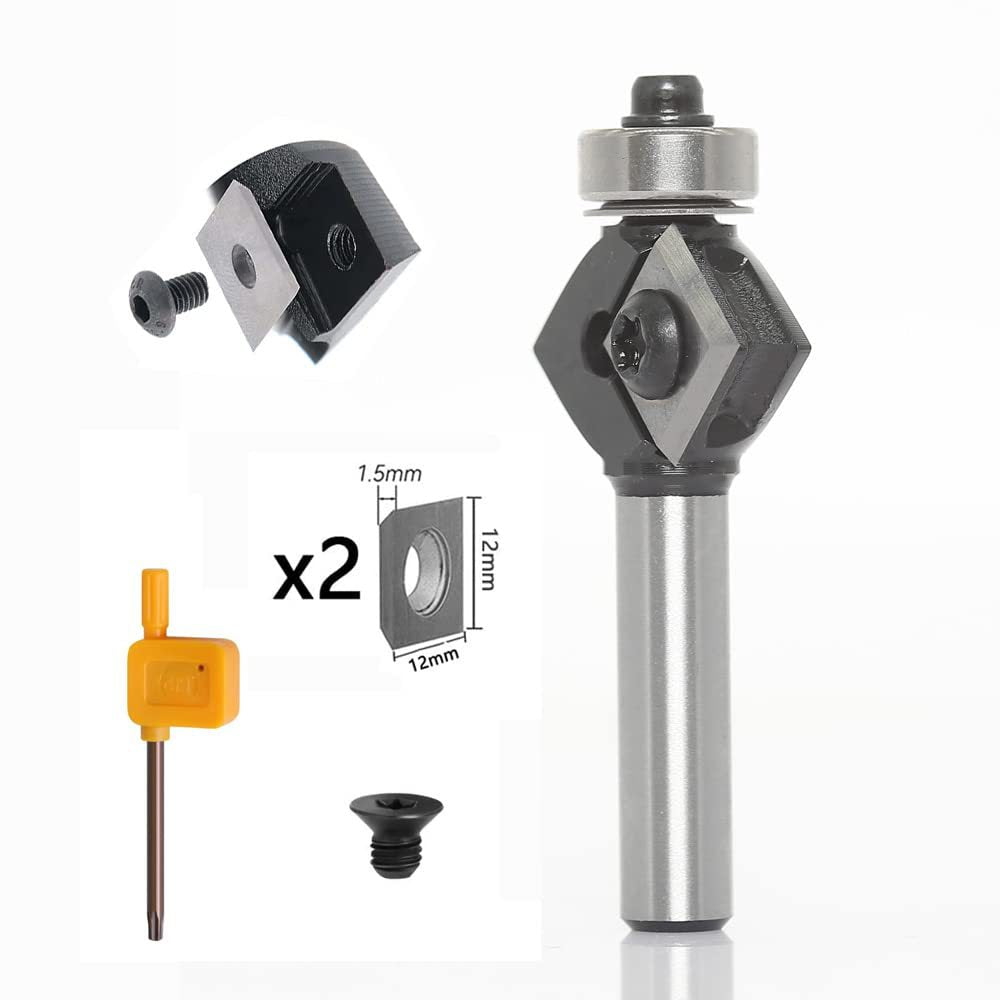

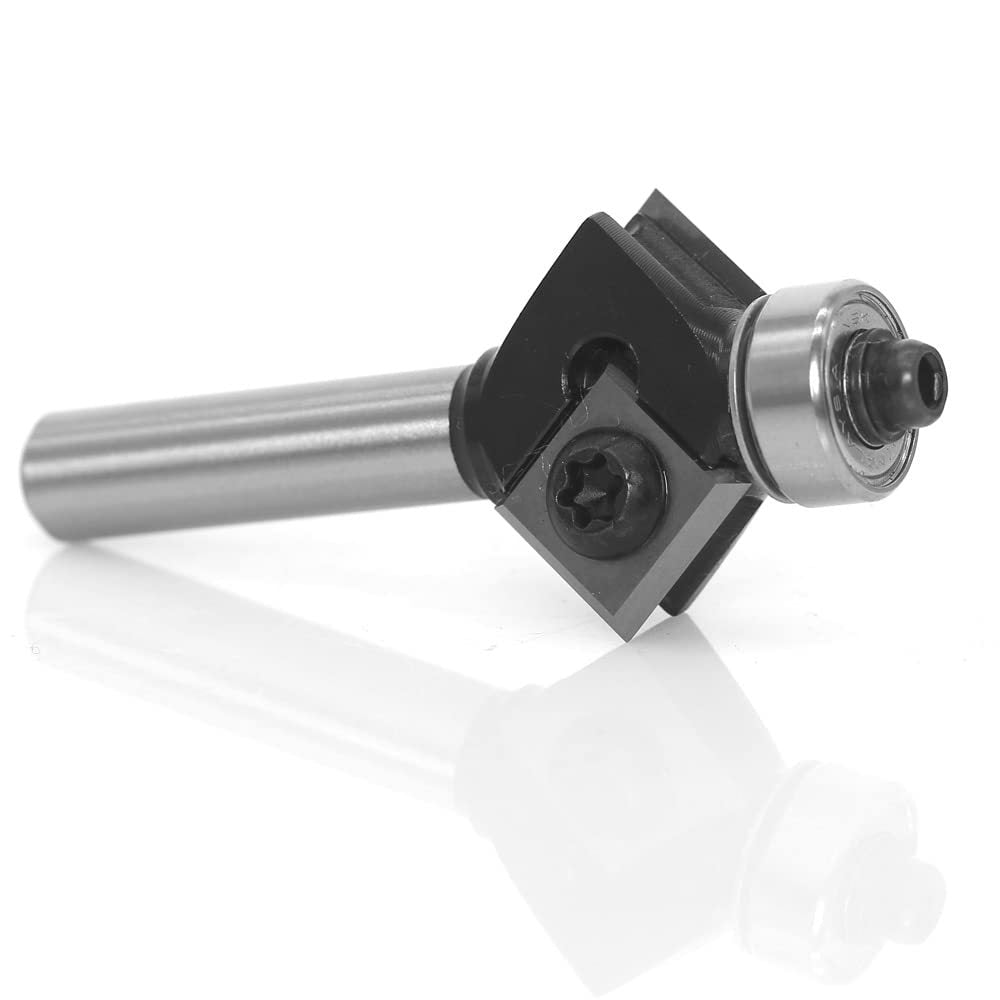

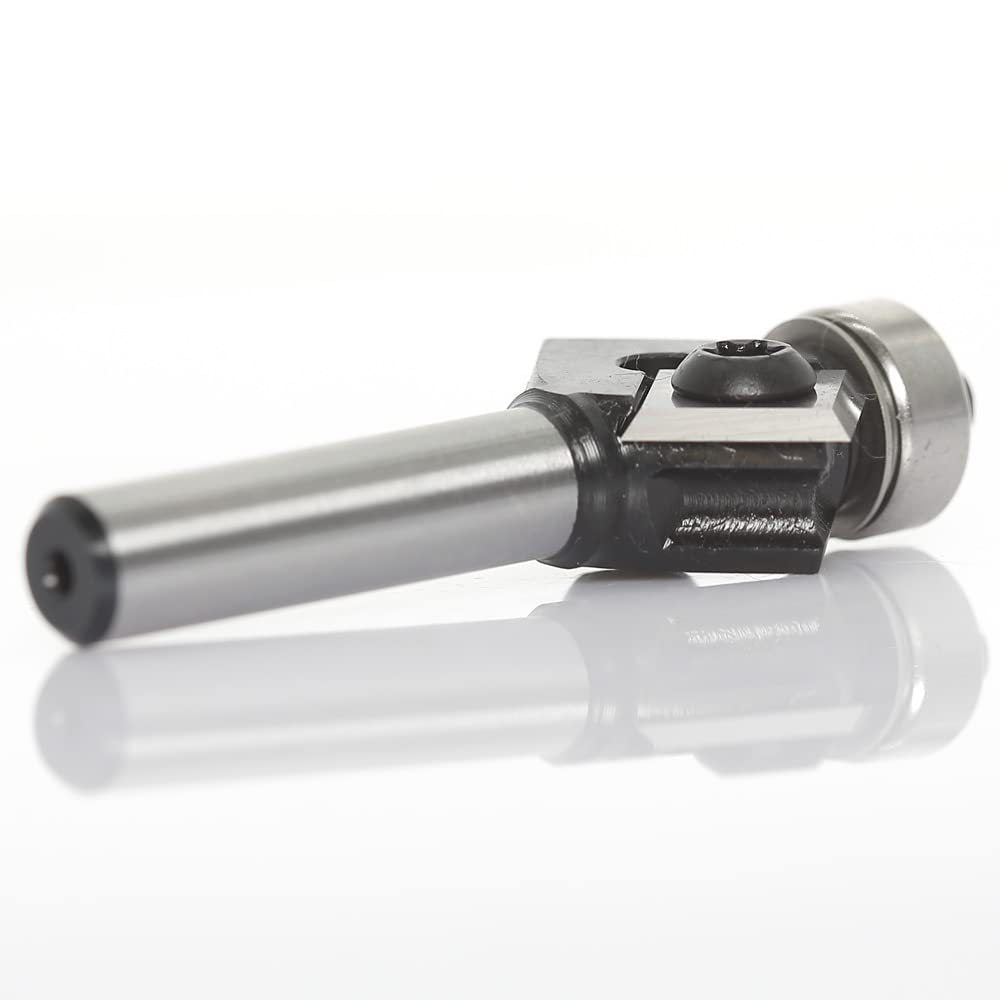

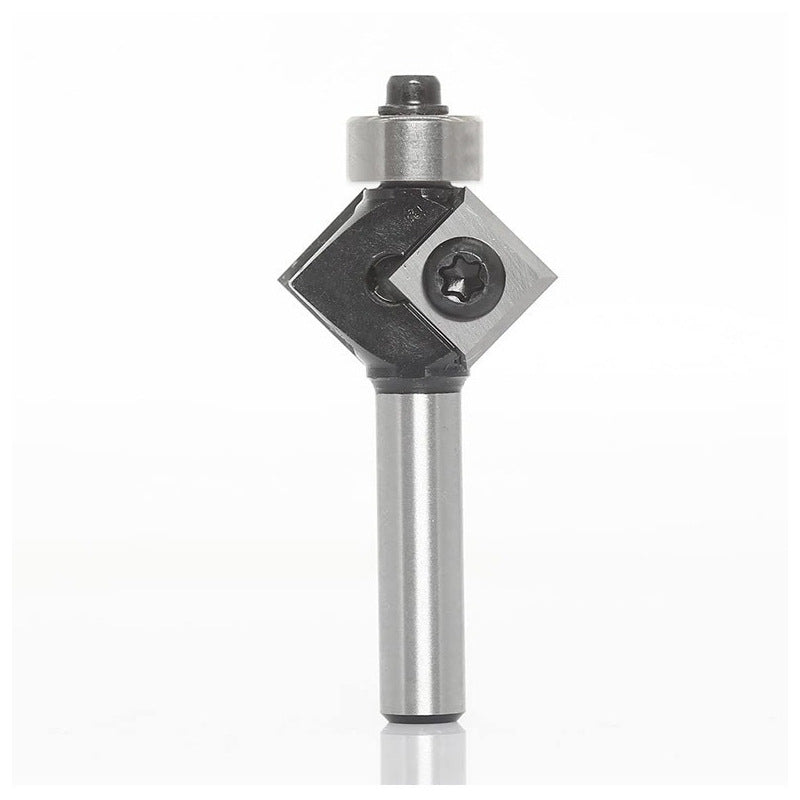

This 45° chamfer router bit is designed with a reversible double-edge insert system, delivering extended durability and accurate cutting performance. Available in three shank sizes (6mm, 8mm, and 1/4"), it offers flexibility for different woodworking setups. Perfect for bevel trimming, edge detailing, and chamfer milling across a wide range of woodworking projects.
✅Premium Build
Body crafted from high-strength alloy steel with a black anti-rust coating.
Reversible tungsten carbide inserts (12×12×1.5 mm) provide up to four cutting edges per insert, reducing replacement frequency.

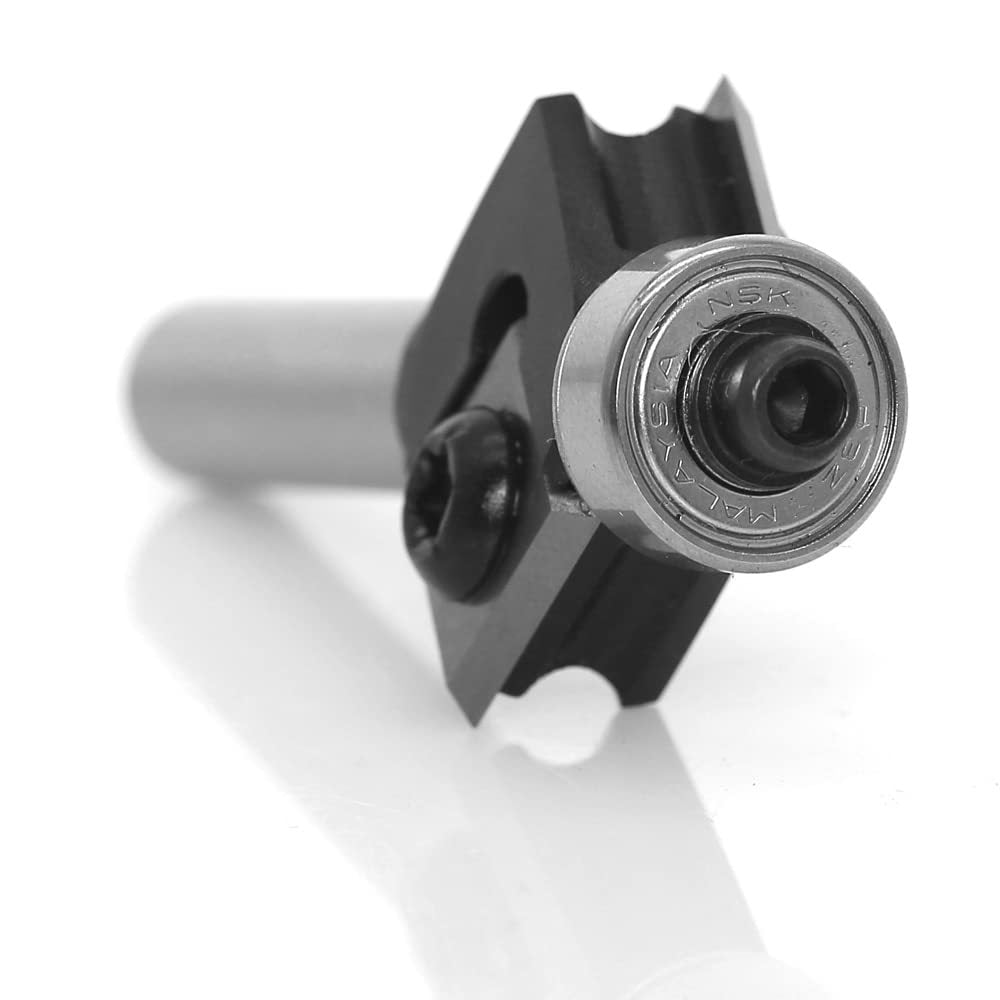

Precision ball bearings ensure smooth guiding and high concentricity.
✅Efficient Cutting & Chip Removal
45° bevel design ensures smooth chip evacuation, preventing clogging and maintaining a clean cutting path.
Enhances surface finish while ensuring cutting stability.
✅Wide Application
Suitable for CNC routers, handheld routers, and benchtop machines.
Works effectively on hardwood, softwood, MDF, plywood, laminates, chipboard, and acrylic.
📏 Available Sizes

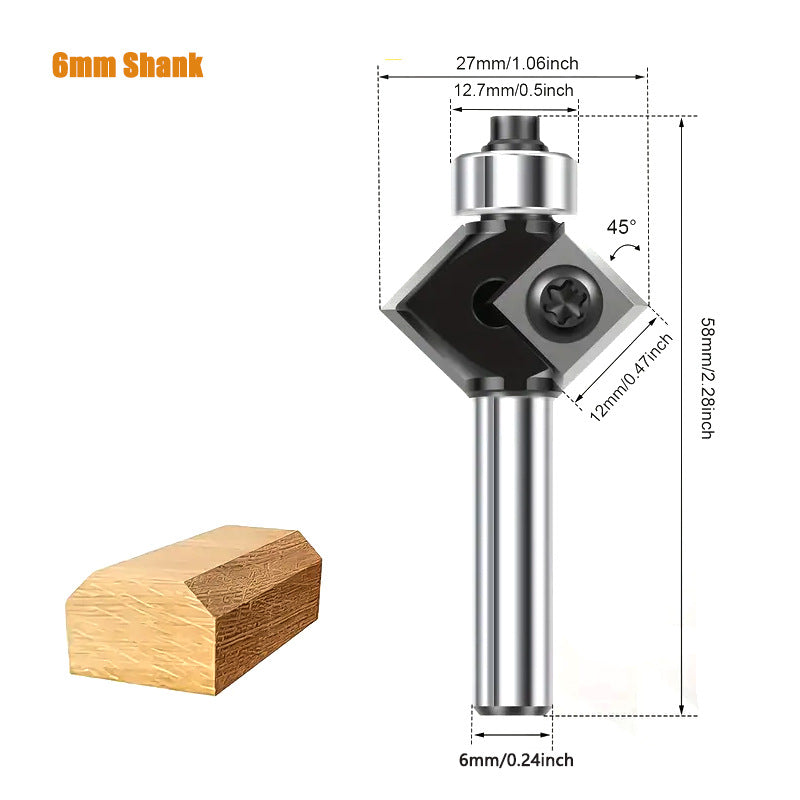

6mm Shank: Cutter Diameter: 27 mm | Cutting Angle: 45° | Total Length: 58 mm | Maximum Cutting Depth: 12 mm
8mm Shank: Cutter Diameter: 27 mm | Cutting Angle: 45° | Total Length: 58 mm | Maximum Cutting Depth: 12 mm
1/4" Shank : Cutter Diameter: 27 mm | Cutting Angle: 45° | Total Length: 58 mm | Maximum Cutting Depth: 12 mm
🔩 Bit Specs
Shank Options: 6mm, 8mm, 1/4"
Cutting Angle: 45°
Edge Design: Double-edged, reversible tungsten carbide inserts (replaceable with Torx spanner)
Material: Tungsten carbide inserts + alloy steel body
Finish: Black rust-resistant coating
Application: Chamfering, bevel trimming, woodworking edge shaping
