Available in yellow and red. Colors will be shipped randomly based on stock availability.
Couldn't load pickup availability
When working with any veneer finished material in your CNC machine, you need a compression spiral end mill to make full depth cut. These bits are designed to leave clean edges on the top and bottom faces of any material. The compression bit's unique design pulls chips upward at the bottom of the stock and downward at the top face, producing chip-free surfaces that are perfect for cabinet and furniture parts. Compression cut spiral end mills are excellent for melamine, plywood, MDF and solid wood. With the added DLC coating, these bits last up to 2.5 times longer than standard uncoated bits.

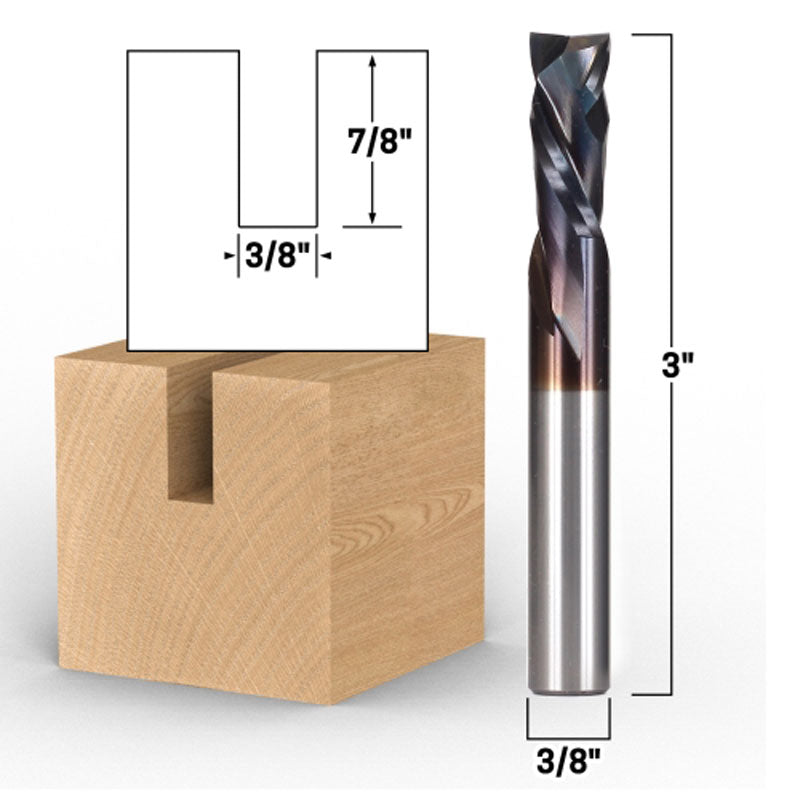

Best for achieving a smooth finish on laminate or veneer finish applications. With DLC Coating for up to 2.5 times the cutting life of regular uncoated bits. Cutting Diameter: 3/8" Cutting Height: 7/8" Shank Diameter: 3/8" Overall Length: 3" Flutes: 2.Compression bits cut down from the top of the stock and up from the bottom of the stock simultaneously. The bit's unique and complex geometry forces the trimmed material to be compressed toward the center of the stock leaving behind a smooth & sharp finish free of chips on both the top and bottom edges. This bit can also be used for mortising projects that require a smooth bottom surface without sacrificing the mortised edge finish.
Bit Specs Coating:DLC (Diamond Like Coating) Material:Solid Carbide Overall Length:3" Number of Flutes:2 Number of Bits:1 End Mill Type:Compression Shank Size:3/8" Cut Direction:Compression Cutting Diameter:3/8" Cutting Length:7/8"
