22.5 Degree Chamfer Edge Forming 1/4" Shank Router Bit

22.5 Degree Chamfer Edge Forming 1/4" Shank Router Bit

$21.00 AUD
$21.00 AUD
Sale Sold out
Shipping calculated at checkout.
Available in yellow and red. Colors will be shipped randomly based on stock availability.

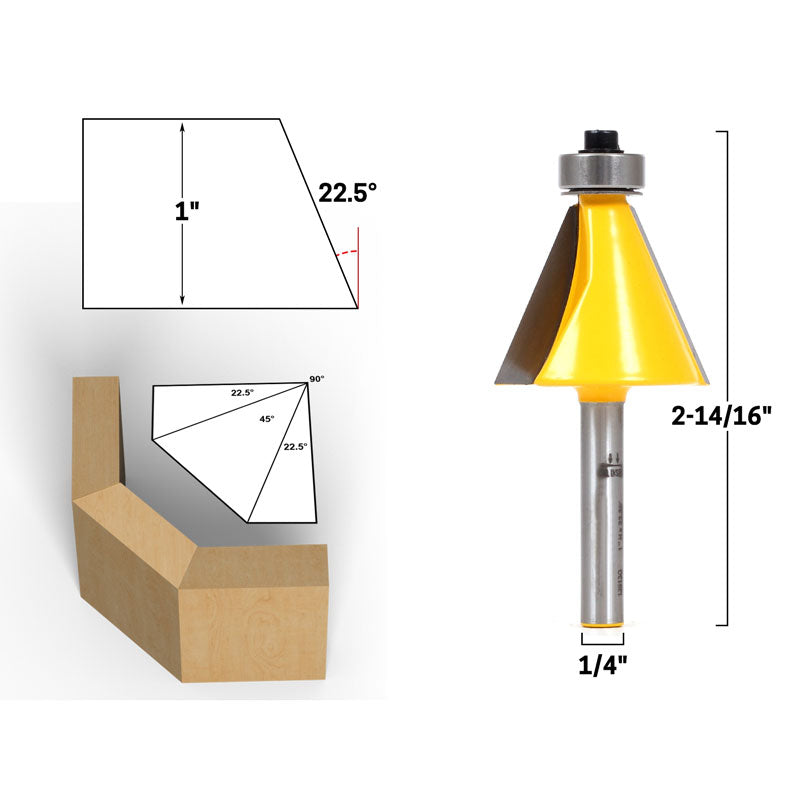

While chamfer bits are mostly used for edging, these bits can also be used to create miter joints of various angles. Some of the available angle degrees are 11.25°, 15°, 22.5°, 30° & 45°. Cutting these angles into 2 adjoining pieces of wood will create miter joints of 22.5°, 30°, 45°, 60° & 90° degrees respectively.

Make 22.5° chamfer and bevel cuts with this chamfer router bit. This 22.5 degree chamfer router bit can be used with stock up to 1" thick. Two flute carbide cutters and 1/4" shank diameter.

Bit Specs
Material:Carbide Tipped
Largest Diameter:1-1/4"
Degrees:22.5°
Number of Flutes:2
Number of Bits:1
Shank Size:1/4"
Cutting Length:1"
Cutting Depth:3/8"
Overall Length:2-13/16"
