Available in yellow and red. Colors will be shipped randomly based on stock availability.
The **15° Bevel Trim Router Bit with Bearing** is designed for clean, precise beveling, chamfering, and edge trimming on laminate, MDF, veneered plywood, particle board, hardwood, softwood, and other woodworking materials. Featuring sharp tungsten carbide cutting edges, a durable #45 steel body, a smooth guide bearing, and a protective coating, it provides stable cutting performance and consistent 15° beveled edges for furniture, cabinetry, laminate work, and general woodworking applications.
✅ Precise 15° Bevel Cutting
Designed with a **15° cutting angle** for consistent bevels and chamfered edges, making it ideal for edge trimming, decorative finishing, and laminate work.
✅Tungsten Carbide Cutting Edges
Equipped with durable tungsten carbide cutting edges for excellent hardness, sharpness, and wear resistance, helping produce smooth and clean cuts across a variety of woodworking materials.
✅Smooth Guide Bearing
The top-mounted guide bearing follows the edge of the workpiece for controlled, accurate trimming. Its smooth rotation helps improve cutting stability and precision during operation.
✅Durable #45 Steel Body
Built with a strong #45 steel body for reliable strength and stability, helping the bit withstand regular woodworking use while maintaining consistent cutting performance.

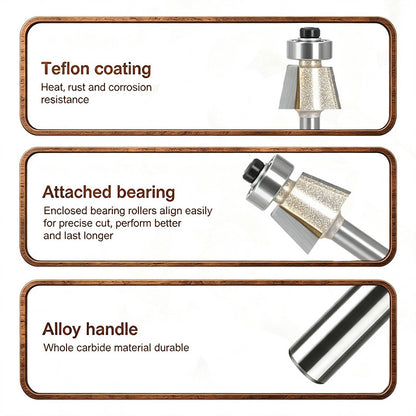

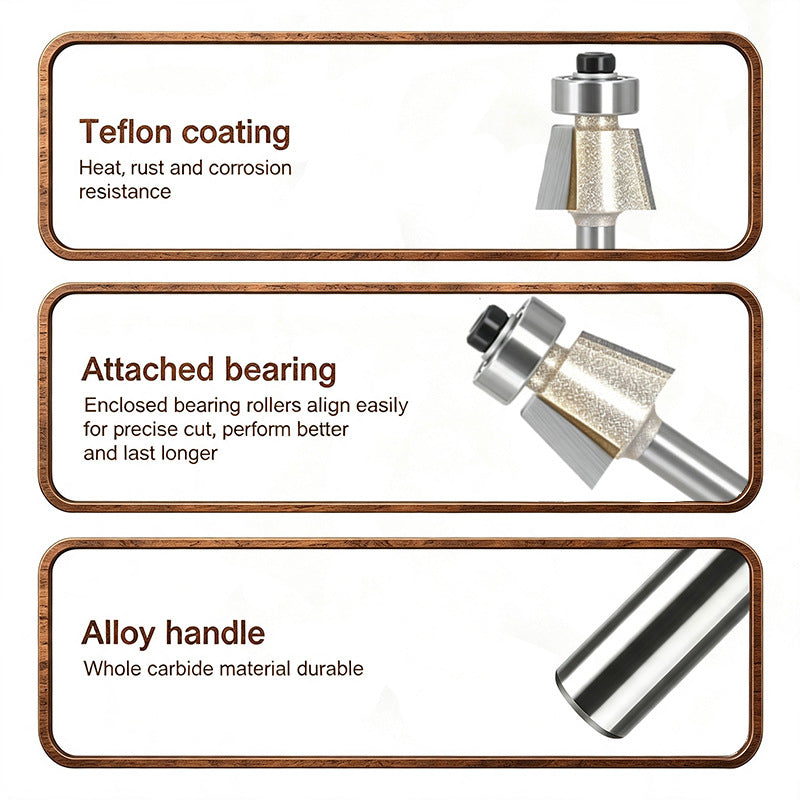

✅Protective Coating
The coated body provides added resistance to heat, rust, and corrosion, helping protect the router bit and extend its service life.

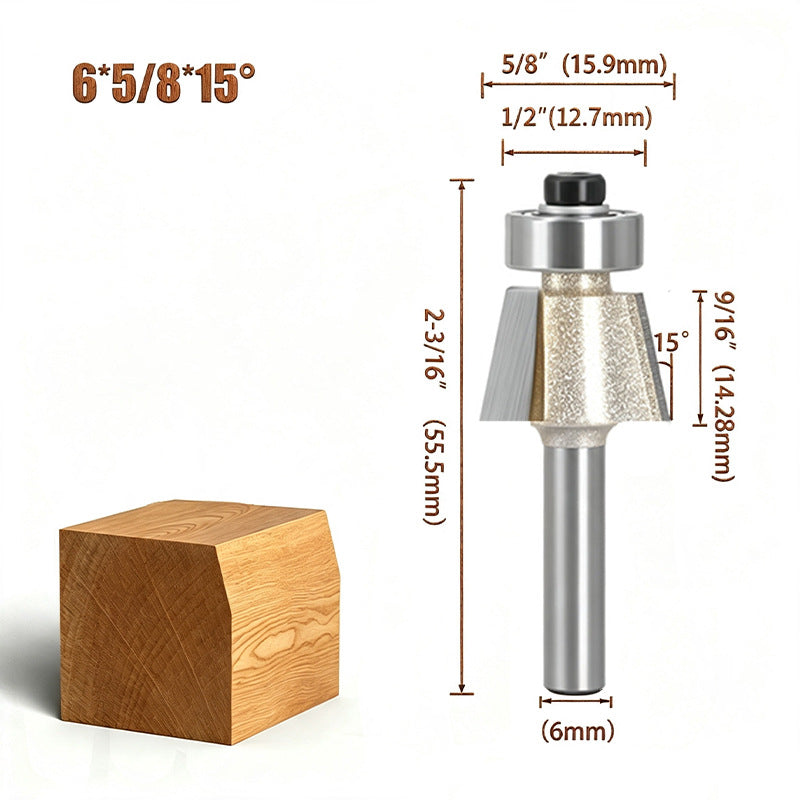

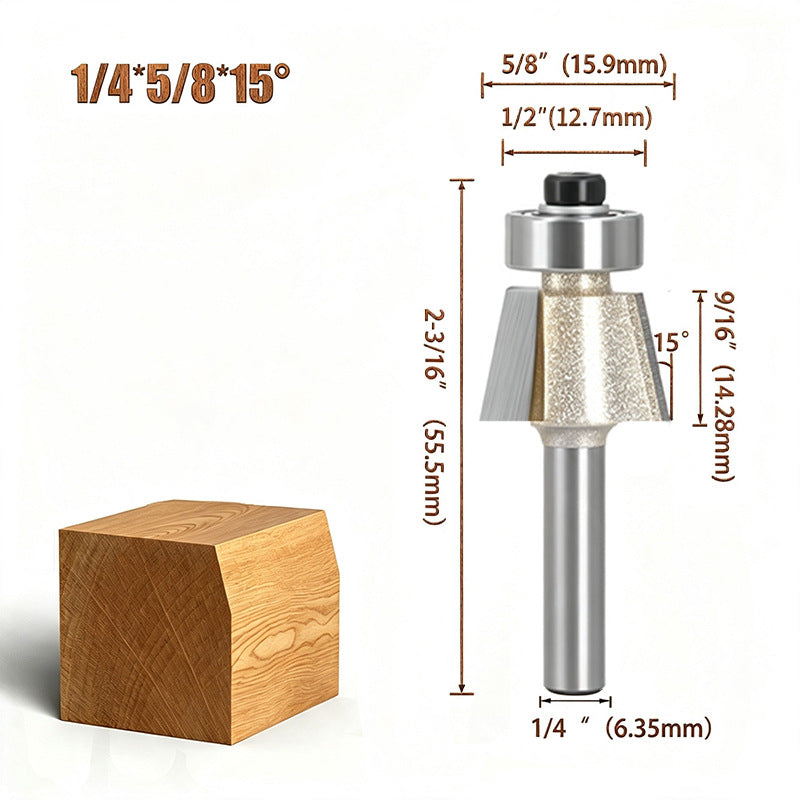

Specifications
Cutting Angle: 15°
Cutting Edge Material: Tungsten Carbide
Body Material: #45 Steel
Cutting Diameter: 5/8" (15.9 mm)
Bearing Diameter: 1/2" (12.7 mm)
Cutting Height: 9/16" (14.28 mm)
Overall Length: 2-3/16" (55.5 mm)
Available Shank Sizes: 1/4" (6.35 mm) / 6 mm
Application: Beveling, Chamfering & Edge Trimming
Suitable Materials: Laminate, MDF, Veneered Plywood, Particle Board, Hardwood, Softwood & Solid Wood
