14° 9/16" Dovetail Joint 1/2" Shank Router Bit

$14.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

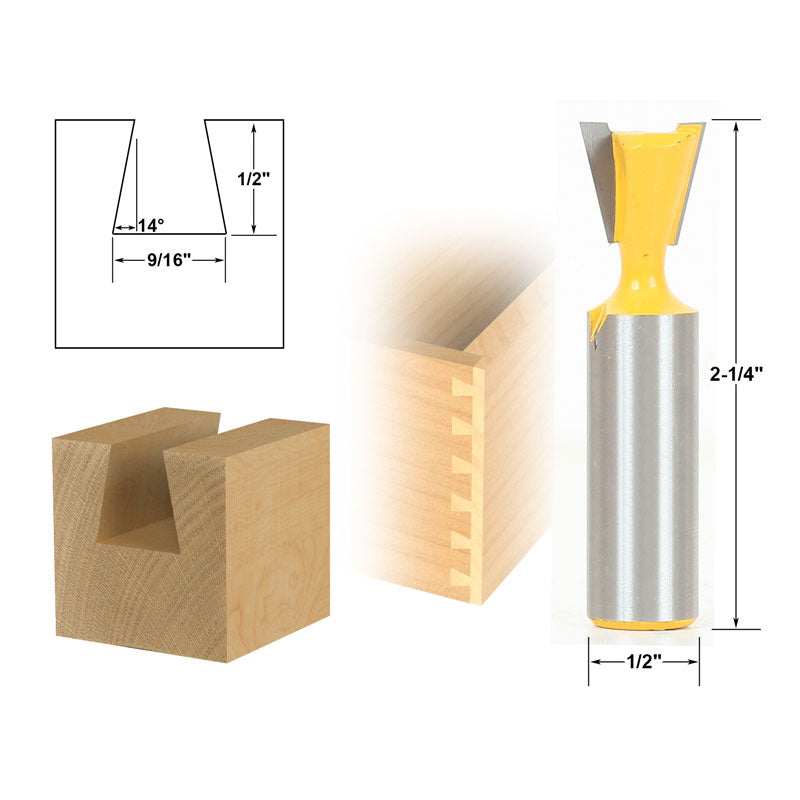

The 14° Dovetail Router Bit can be used with a dovetail jig for half-blind dovetail joints or can be used together with dado bits to produce through-dovetail joints. 14° X 9/16" Cutting Diameter X 1/2" Height. 2 flute carbide cutters and 1/2" Shank.

Features
Industrial Quality
C3 Tungsten Carbide Cutters
Solid Hardened Steel Body
Anti-Kickback Design
Build-Up Resistant Coating
Satisfaction Guaranteed

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/2"
Cutting Diameter:9/16"
Cutting Length:1/2"
Overall Length:2-1/4"
Largest Diameter:9/16"
Degrees:14°
Number of Flutes:2

View full details

Not great for hand routers

Exactly what I was looking for.

Works really well once you set the groove at the right depth. The only minor issue is it’s not really made to produce the Trex grove profile so it lacks the angular lead in. But still works fine to allow grooving the square edge treads to use the hidden fasteners. Be careful though, if it hits your skin or anything else it will tear it up!

Didn't expect these to be so great out the box when the big name brands sell these for $100+. Ran them through 100+ feet of composite exterior trim material with no issue.
