1/4" Dia 2 Flute Low Helix Upcut Spiral End Mill 1/4" Shank CNC Router Bit

1/4" Dia 2 Flute Low Helix Upcut Spiral End Mill 1/4" Shank CNC Router Bit

Regular price $34.00 AUD
Regular price Sale price $34.00 AUD
Sale Sold out
Shipping calculated at checkout.
Available in yellow and red. Colors will be shipped randomly based on stock availability.

To get a smooth finish in hard plastics like acrylic with your CNC router, use a low helix spiral end mill. The modified cutter angle produces a better finish in plastics than standard spiral bits. Downcut bits pull chips downward, producing a clean top edge in your parts. Consequently, the chips accumulate in the cut path and should be removed to prevent bit breakage. Low helix bits require slower feed speeds than normal "high helix" bits.

Best for achieving smooth finish on hard plastics.

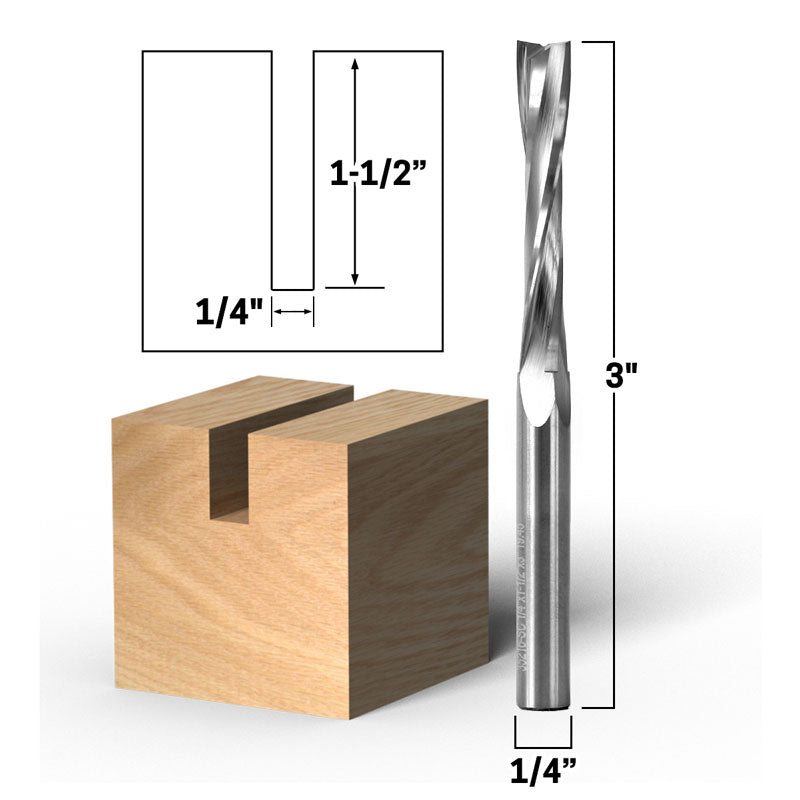

Cutting Diameter: 1/4"
Cutting Height: 1-1/2"
Shank Diameter: 1/4"
Overall Length: 3"
Flutes: 2 Low Helix bits perform a more lateral movement with less lift resulting in a smoother finish. These bits are a better choice for hard plastics such as acrylic and phenolic. Up-cut endmills direct chips up and away from the milling area leaving an unobstructed path for the endmill. Bit breakage is less likely.

Bit Specs
Material:Solid Carbide 55 HRC
Overall Length:3"
Number of Flutes:2
Number of Bits:1
End Mill Type:Low Helix Upcut
Shank Size:1/4"
Cut Direction:Upcut Low Helix
Cutting Diameter:1/4"
Cutting Length:1-1/2"
