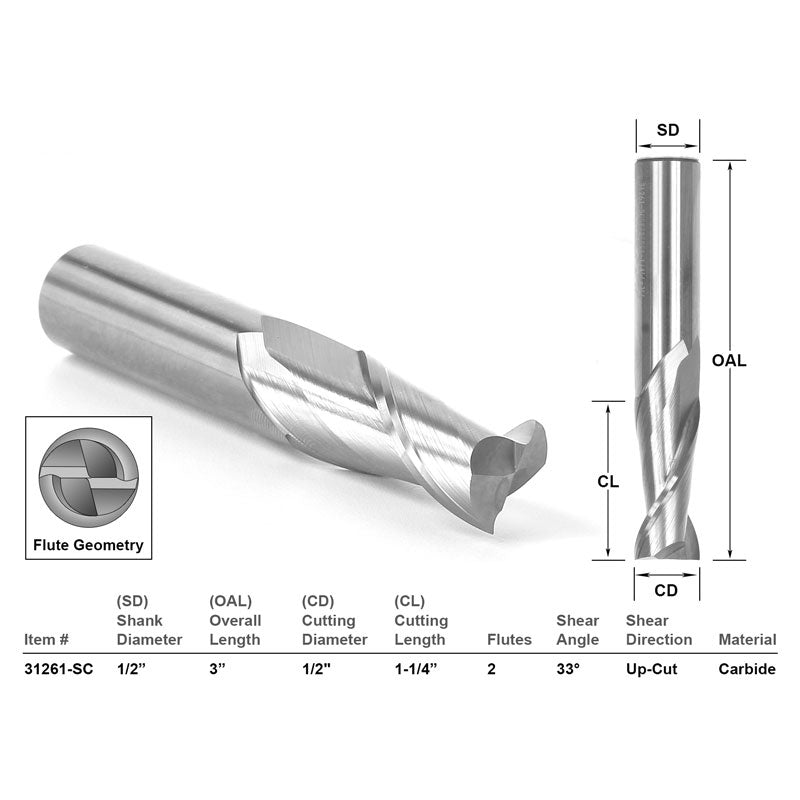

1/2" X 1 1/4" X 1/2" X 3" CNC Router Solid Carbide Upcut Bit

Best used for: Standard milling, dadoing, and boring.

• Cutting Diameter: 1/2"
• Cutting Height: 1-1/4"
• Shank Diameter: 1/2"
• Overall Length: 3"
• Flutes: 2

Up-cut endmills direct woodchips up and away from the milling area leaving an unobstructed path for the endmill. Bit breakage is less likely. Up cut end mills are the best choice for most standard millling applications. The up cut direction can leave behind a minimally rough top surface edge.

Pros: Quick and efficient milling, chip removal.
Cons: Can cause minimal top surface edge roughness or tear-away.
(Choose a down cut spiral bit for projects that require smooth top surface edges.)

For use in CNC milling and carving machines.

Bit Specs
Material:Solid Carbide
Number of Bits:1
End Mill Type:Upcut
Shank Size:1/2"
Cut Direction:Upcut
Cutting Diameter:1/2"
Cutting Length:1-1/4"
Overall Length:3"
Number of Flutes:2
Flute Angle:3°
