1 1/2" Radius Horizontal Crown 1/2" Shank Router Bit

1 1/2" Radius Horizontal Crown 1/2" Shank Router Bit

Regular price $22.00 AUD
Regular price Sale price $22.00 AUD
Sale Sold out
Shipping calculated at checkout.
Available in yellow and red. Colors will be shipped randomly based on stock availability.

Horizontal crown router bits, also referred to as large bowl router bits, create large spherical indents in a variety of materials and can be plunged straight into the work piece. These are perfect for making large custom crown moldings, bowls, coin trays, mancala game boards and other interesting projects. These can be used on solid wood and MDF.

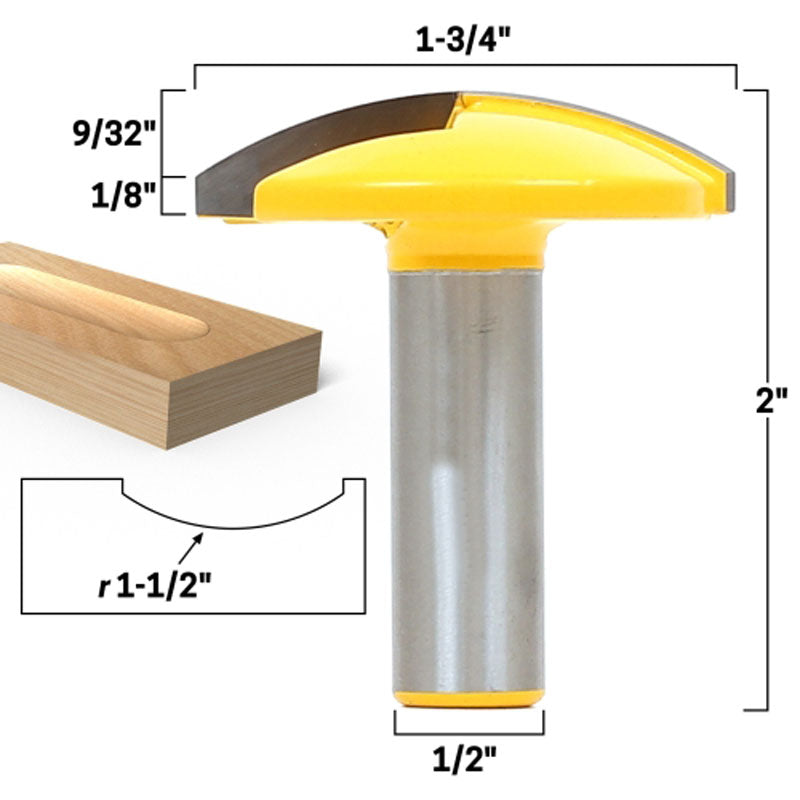

Use Router bit to create a 1-1/2" radius concave bowl or crater-like indents at 1-3/4" diameter across and 9/32" deep. May be plunged deeper to create side walls or shallower for a smaller diameter. Blades meet in the center allowing true vertical plunging. CNC compatible.

Bit Specs
Material:Carbide Tipped
Overall Length:2"
Shank Size:1/2"
Cutting Diameter:1-3/4"
Number of Bits:1
Cutting Length:3/8"
Number of Flutes:2
Largest Diameter:1-3/4"
Radius:1-1/2"

View full details

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
JP

I use this to make cuts on synthetic decking boards - this allows for rounded and irregular shapes to be cut cleanly with no large gaps. It took a few test passes to find the right speed and feed rate (fast, but not so fast as to melt the plastic). The end result is a very professional product that customers have raved about.

P
Phil

This bit fits into pretty much any router, and does a nice job of slicing an 1/8" path through wood, aluminum, plastic, vinyl, laminates, etc.

This bit is a down-cut bit; which means it pushes the cut-away chips into the workpiece. The main benifit of this type of cutter is that it is much less likely to chip a workpiece that has a thin and/or fragile face, such as plywood or lamitated surfaces. However, it only has two flutes; so it cuts quickly and easily -- but not as cleanly or smoothly as finer ones.

This two-flute, down-cut configuration will cause less chipping than a similar up-cut bit; but may leave a rougher looking groove than a finer one.

If you need a clean cut; your best bet is to cut in multiple passes, with the final one being very shallow.

O
Oscar Armando López Acosta

Delivery was earlier than offered, well packaged, now I will test its performance.
